AmphenolUnited States

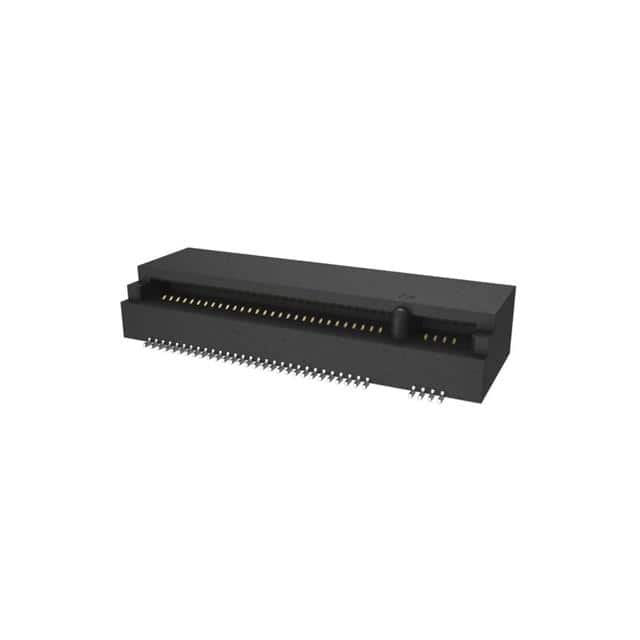

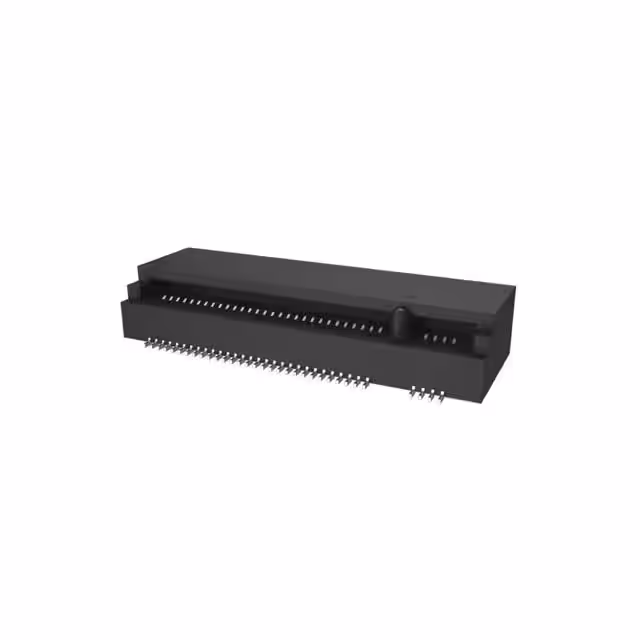

CONN M.2 FMALE 75POS 0.020 GOLD
All alternatives
View full reportTechnical parameters
Key specs
Positions75
Rows2
Pitch500 µm
GenderFemale
| Environment and package | |
|---|---|
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Other | |
| Card Thickness | 0.031" (0.79mm) |
| Card Type | M.2 (NGFF) Mini Card |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Material | Copper Alloy |
| Contact Type | - |
| Features | Board Guide, Board Lock, Solder Retention |
| Flange Feature | - |
| Gender | Female |
| Material - Insulation | Liquid Crystal Polymer (LCP) |
| Mfr | Amphenol ICC (FCI) |
| Number of Positions | 75 |
| Number of Positions/Bay/Row | - |
| Number of Rows | 2 |
| Pitch | 0.020" (0.50mm) |
| Product Status | Active |
| Read Out | Dual |
| Series | M.2 |
| Termination | Solder |
