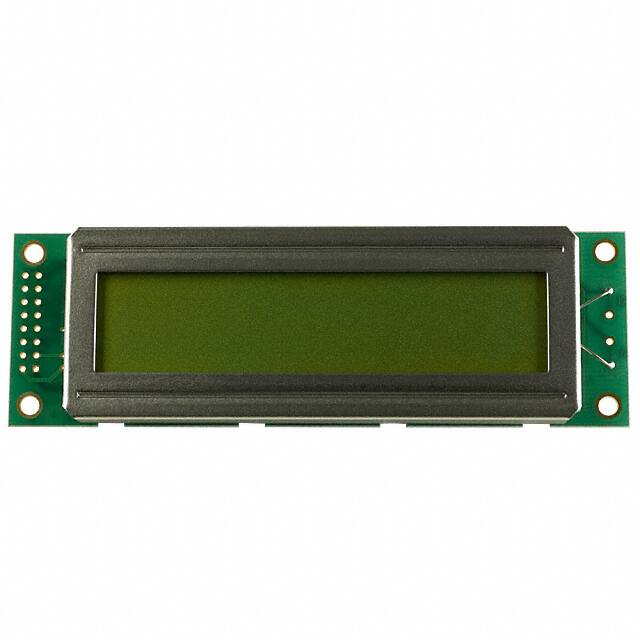

LCD MOD 40DIG 20X2 TRANSFLCT GRN
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage - Supply | 5V |
| Environment and package | |
| Character Size | 5.55mm H x 3.20mm W |
| Dot Size | 0.60mm W x 0.65mm H |
| Operating Temperature | -5°C~50°C |
| Other | |
| Background Color | Green |
| Backlight | LED - Green |
| Character Format | 5 x 8 Dots |
| Display Format | 20 x 2 |
| Display Mode | Transflective |
| Display Type | STN - Super-Twisted Nematic |
| Interface | Parallel |
| Mfr | Varitronix |
| Number of Characters | 40 |
| Outline L x W x H | 116.00mm x 37.00mm x 10.00mm |
| Product Status | Obsolete |
| Series | MDL(S)-20265 |
| Text Color | - |
| Viewing Area | 83.00mm L x 18.60mm W |
