VaritronixChina

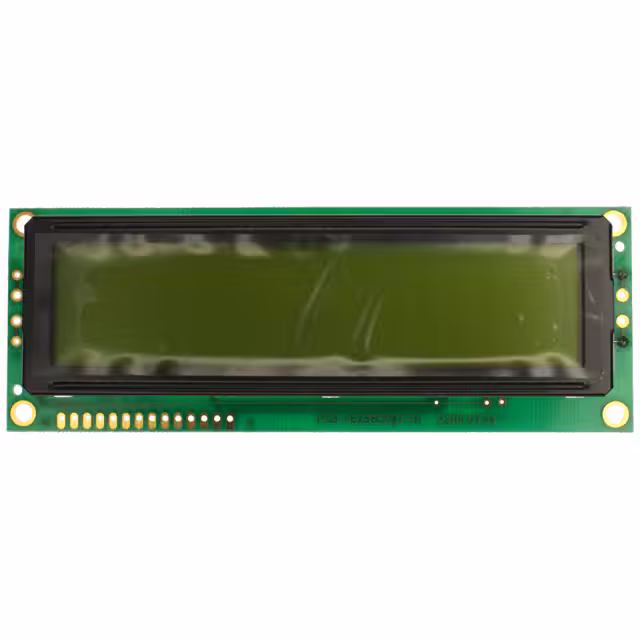

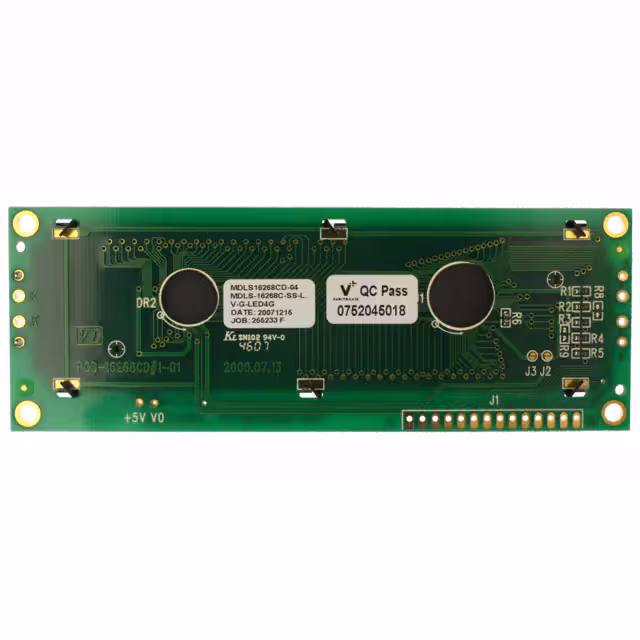

LCD MOD 32DIG 16X2 TRANSFLCT GRN
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage - Supply | 5V |
| Environment and package | |
| Character Size | 9.22mm H x 4.84mm W |
| Dot Size | 0.92mm W x 1.10mm H |
| Operating Temperature | -5°C~50°C |
| Package | Box |
| Other | |
| Background Color | Green |
| Backlight | LED - Green |
| Character Format | 5 x 8 Dots |
| Display Format | 16 x 2 |
| Display Mode | Transflective |
| Display Type | STN - Super-Twisted Nematic |
| Interface | Parallel |
| Mfr | Varitronix |
| Number of Characters | 32 |
| Outline L x W x H | 122.00mm x 44.00mm x 11.00mm |
| Product Status | Obsolete |
| Series | MDL(S)-16268C |
| Text Color | - |
| Viewing Area | 99.00mm L x 23.00mm W |
