Microchip TechnologyUnited States
THERMOSTAT 5DEGC ACT LOW SOT23-5
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Output (Max) | 20mA |
| Current - Supply | 25µA |
| Voltage - Supply | 3 V ~ 6 V |
| AC and DC characteristics | |
| Accuracy | ±4°C |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~125°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | SC-74A, SOT-753 |

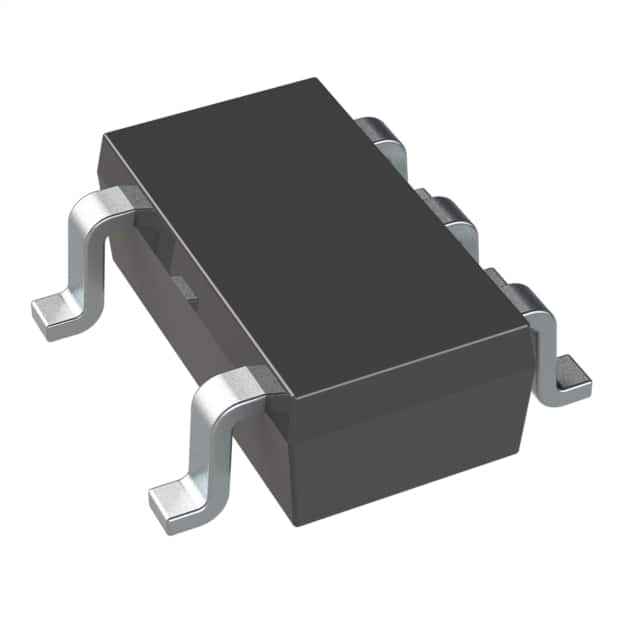

| Supplier Device Package | SOT-23-5 |
| Switching Temperature | 5°C |
| Trip Temperature Threshold | Cold |
| Other | |
| Base Product Number | MCP9503 |
| Features | - |
| Mfr | Microchip Technology |
| Output | Active Low |
| Output Function | /UnderTemp |
| Output Type | Open Drain |
| Product Status | Active |
| Selectable Hysteresis | Yes |
| Series | - |
