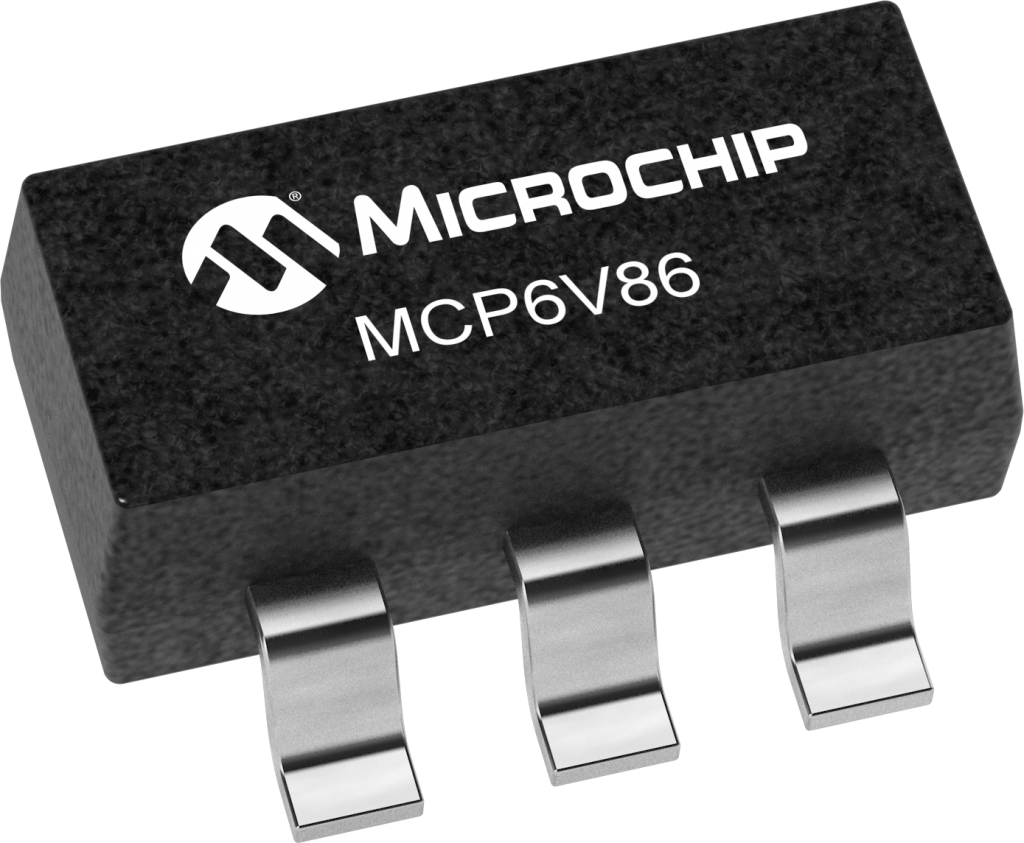

The MCP6V86/6U/7/9 family of operational amplifiers provides input offset voltage correction for very low offset and offset drift. These devices provide a gain bandwidth product of 5 MHz, are unity gain stable, have no 1/f noise, and provide superior CMRR and PSRR performance. These products operate with a single supply voltage as low as 2.2V with a maximum quiescent current of only 770 uA per channel.
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Operating Voltage Max V (volt) | 5.5 |
| Operating Voltage Min V (volt) | 2.2 |
| AC and DC characteristics | |
| CMRR Min (dB) | 112 |
| Gain Bandwidth Product kHz (kilohertz) | 5000 |
| Input Voltage Noise Density (nV/rt(Hz)) | 13 |
| PSRR Min (dB) | 110 |
| Slew Rate (V/µs) | 4 |
| Environment and package | |
| # Per Package | 1 |
| Other | |
| Enhanced EMI Protection | Yes |
| Iq Max (uA) | 770 |
| Iq Typical (µA) | 500 |
| PM (deg) | 60 |
| Vos Max µV (microvolt) | 25 |
