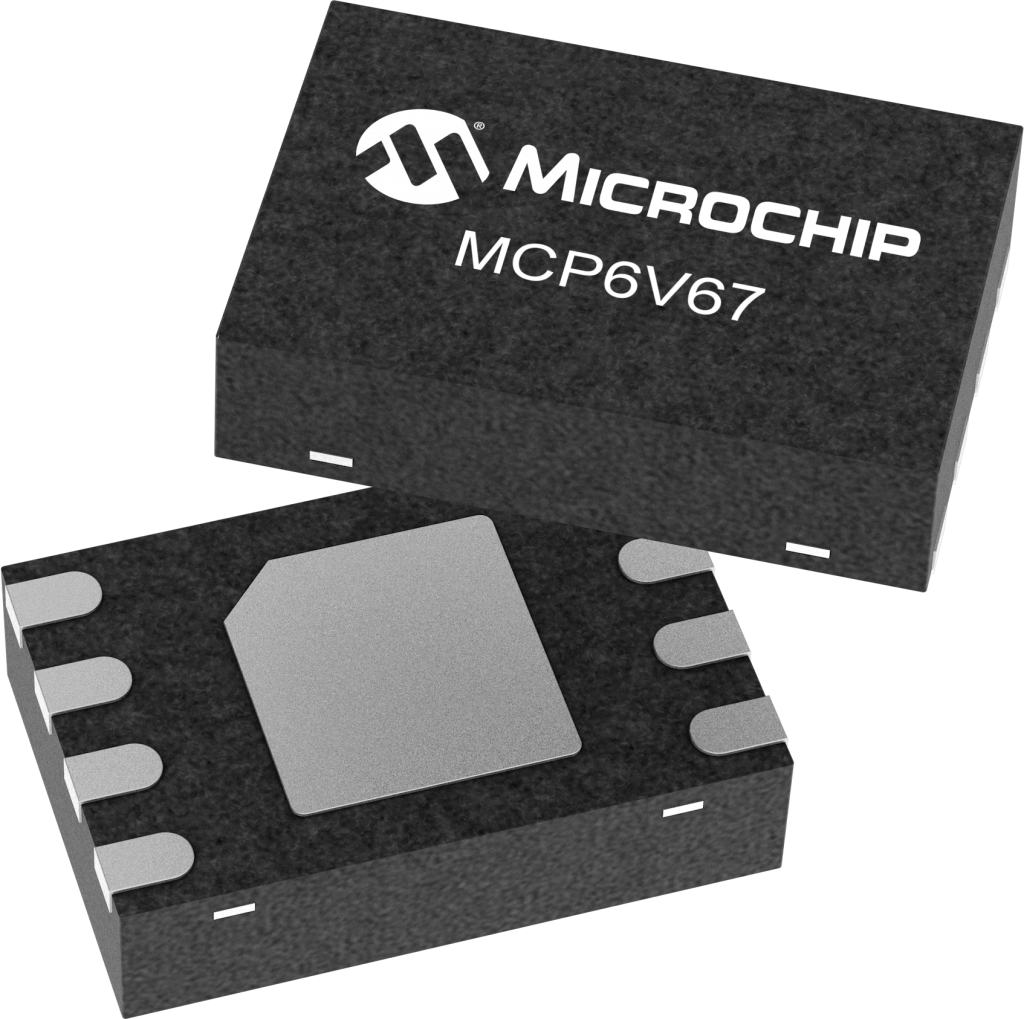

The MCP6V66/6U/7/9 family of operational amplifiers provides input offset voltage correction for very low offset and offset drift. These devices provide a gain bandwidth product of 1 MHz, are unity gain stable, have no 1/f noise, and provide superior CMRR and PSRR performance. These products operate with a single supply voltage as low as 1.8V with a maximum quiescent current of only 130 uA.
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Operating Voltage Max V (volt) | 5.5 |
| Operating Voltage Min V (volt) | 1.8 |
| AC and DC characteristics | |
| CMRR Min (dB) | 111 |
| Gain Bandwidth Product kHz (kilohertz) | 1000 |
| Input Voltage Noise Density (nV/rt(Hz)) | 26 |
| PSRR Min (dB) | 110 |
| Slew Rate (V/µs) | 0.45 |
| Environment and package | |
| # Per Package | 2 |
| Other | |
| Enhanced EMI Protection | Yes |
| Iq Max (uA) | 130 |
| Iq Typical (µA) | 80 |
| PM (deg) | 60 |
| Vos Max µV (microvolt) | 25 |
