Microchip TechnologyUnited States
DUAL, 45V ZERO-DRIFT OP AMP, E T
All alternatives
View full reportTechnical parameters
Key specs
Supply voltage4.5 ~ 45 V
Gain bandwidth product2 MHzTyp
Input offset voltage2.4 µVTyp
Quiescent current470 µATyp
Channels2
| Power | |
|---|---|
| Current - Input Bias | 60 pA |
| Current - Output / Channel | 46 mA |
| Current - Supply | 470µA (x2 Channels) |
| Voltage - Supply Span (Max) | 45 V |
| Voltage - Supply Span (Min) | 4.5 V |
| AC and DC characteristics | |
| Gain Bandwidth Product | 2 MHz |
| Slew Rate | 1.2V/µs |
| Voltage - Input Offset | 2.4 µV |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Package | Tape & Reel (TR) |

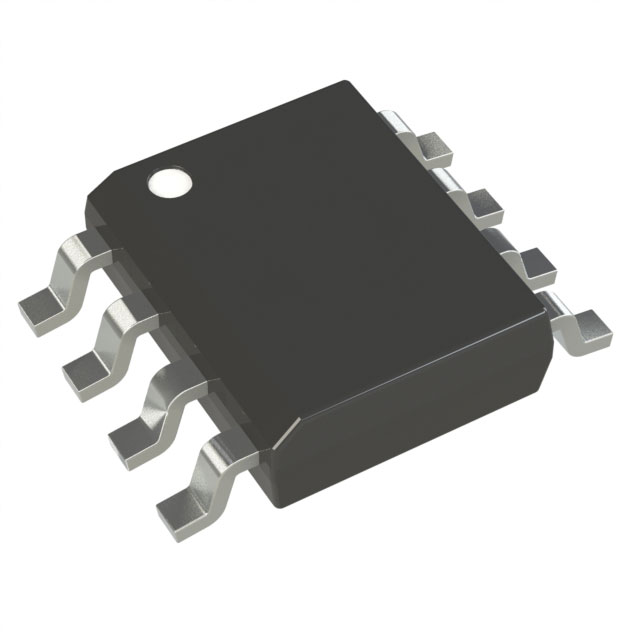

| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Other | |
| Amplifier Type | Chopper (Zero-Drift) |
| Mfr | Microchip Technology |
| Number of Circuits | 2 |
| Output Type | Single Ended, Rail-to-Rail |
| Product Status | Active |
| Series | - |
