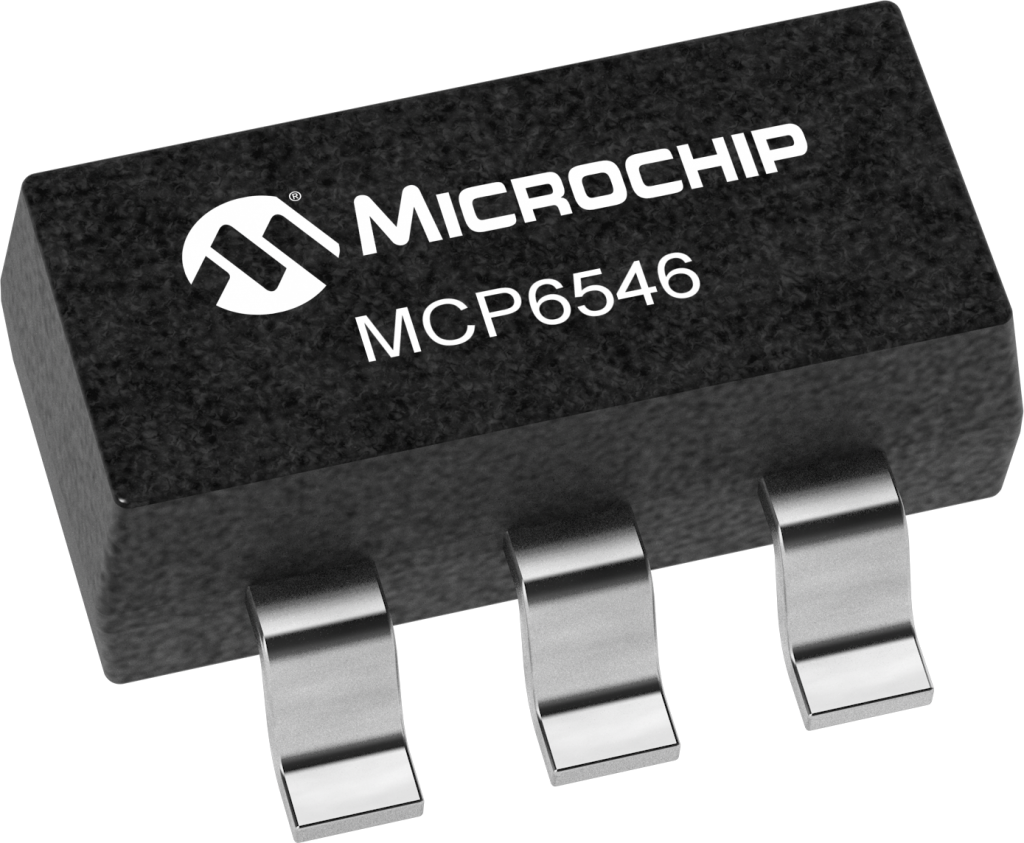

The MCP6546 is an Open-Drain, single comparator. This single-ended device operates from 1.6V to 5.5V, with typical quiescent current of 600 nA and a maximum of 1 microamp and is 10V output capable. This device is offered in the eight lead PDIP, SOIC, MSOP and five lead SOT-23 package. AEC-Q100 Grade 1 qualification is available for this device
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Channels | 1 |
| Operating Voltage Max V (volt) | 5.5 |
| Operating Voltage Min V (volt) | 1.6 |
| AC and DC characteristics | |
| Propagation Delay (Typical) ns (nanosecond) | 4000 |
| Other | |
| Iq Max (uA) | 1 |
| Iq Typical (µA) | 0.6 |
| Output Logic | Open Drain |
| Vos Max µV (microvolt) | 7000 |
