Microchip TechnologyUnited States
DUAL, 10MHZ OP AMP, E TEMP
All alternatives
View full reportTechnical parameters
Key specs
Supply voltage1.8 ~ 5.5 V
Gain bandwidth product10 MHzTyp
Input offset voltage1.6 mVTyp
Quiescent current550 µATyp
Channels2
| Power | |
|---|---|
| Current - Input Bias | 1 pA |
| Current - Output / Channel | 50 mA |
| Current - Supply | 550µA (x2 Channels) |
| Voltage - Supply Span (Max) | 5.5 V |
| Voltage - Supply Span (Min) | 1.8 V |
| AC and DC characteristics | |
| Gain Bandwidth Product | 10 MHz |
| Slew Rate | 20V/µs |
| Voltage - Input Offset | 1.6 mV |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~125°C(TA) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |

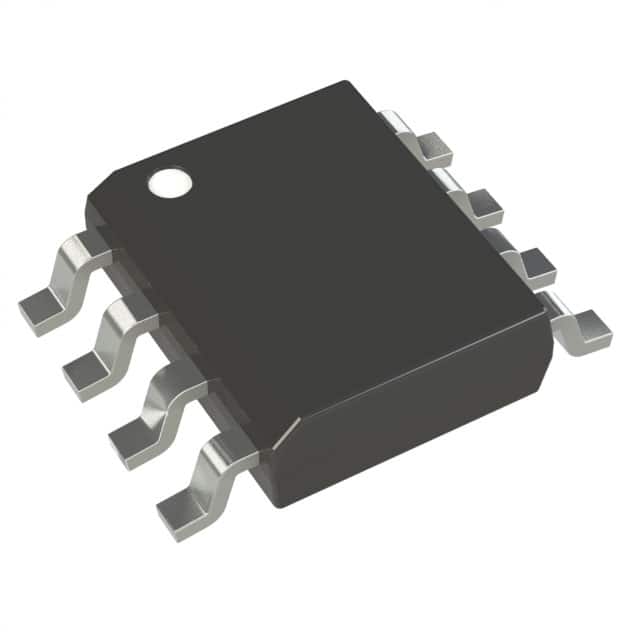

| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Other | |
| Amplifier Type | General Purpose |
| Mfr | Microchip Technology |
| Number of Circuits | 2 |
| Output Type | Rail-to-Rail |
| Product Status | Active |
| Series | - |
