Cornell Dubilier Electronics (CDE)United States

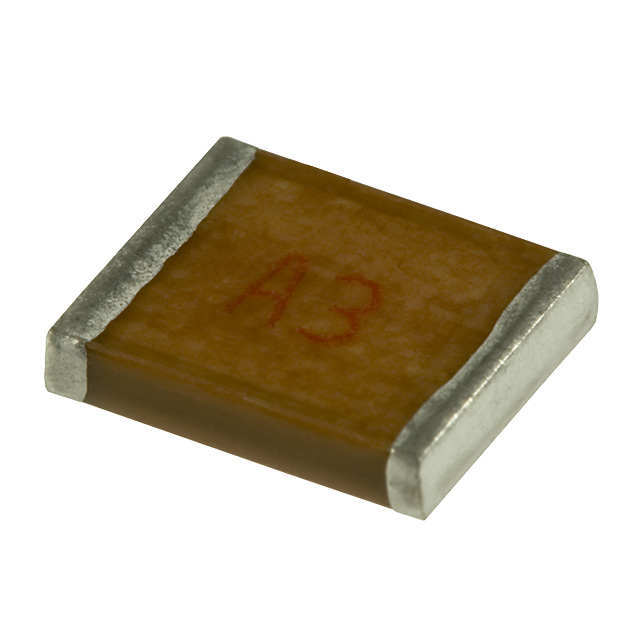

MC22FF431J
Mica and PTFE CapacitorsCAP MICA 430PF 5% 1KV 2220
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage - Rated | 1 kV |
| Environment and package | |
| Height - Seated (Max) | 0.157" (4.00mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | 2220 (5750 Metric) |
| Size / Dimension | 0.224" L x 0.197" W (5.70mm x 5.00mm) |
| Other | |
| Capacitance | 430 pF |
| Dielectric Material | Mica |
| Features | RF, High Q, Low Loss |
| Lead Spacing | - |
| Manufacturer | Cornell Dubilier Knowles |
| Packaging | Bulk |
| Part Status | Obsolete |
| Series | MC |
| Tolerance | ±5% |
Documents
No documents are linked to this part yet.
