Floyd Bell IncUnited States

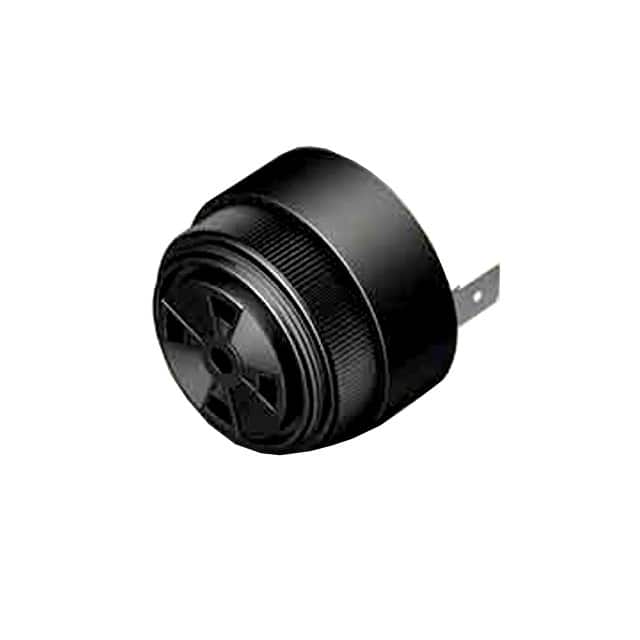

BUZZER PIEZO 35.81MM PNL MNT
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Supply | 3 ~ 20mA |
| Voltage Range | 3 ~ 16V |
| AC and DC characteristics | |
| Frequency | 2.9kHz |
| Environment and package | |
| Height - Seated (Max) | 0.990" (25.15mm) |
| Mounting Type | Panel Mount |
| Operating Temperature | -20°C~65°C |
| Package | Bulk |
| Size / Dimension | 1.410" Dia (35.81mm) |
| Other | |
| Approval Agency | UL, UR |
| Base Product Number | MC-07-116 |
| Driver Circuitry | Indicator, Internally Driven |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Input Type | DC |
| Mfr | Floyd Bell Inc |
| Operating Mode | Single Tone |
| Port Location | Top |
| Product Status | Active |
| Series | AudioLarm II |
| Sound Pressure Level (SPL) | 93dB @ 30V, 61cm |
| Technology | Piezo |
| Termination | Quick Connect Tab - 0.250" (6.35mm) |
