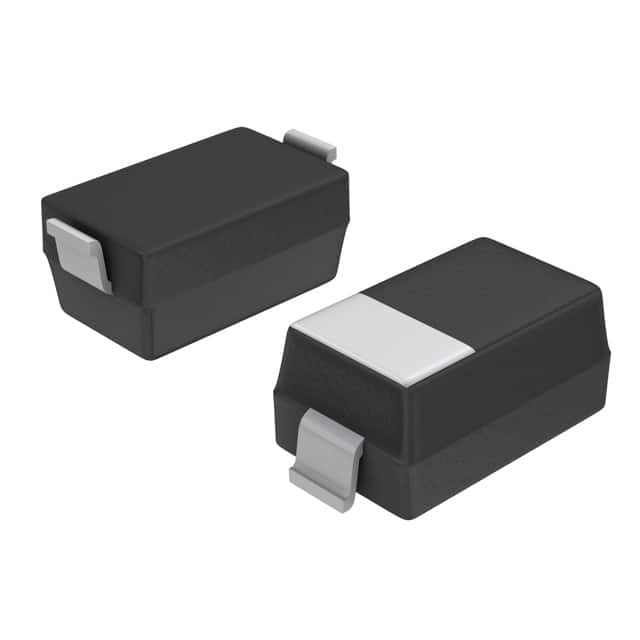

MBR0520LT1H
onsemiUnited States

MBR0520LT1H

ObsoleteDiodes - Rectifiers - SingleSOD-123

DIODE SCHOTTKY 20V 500MA SOD123

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Key specs

Reverse voltage20 V
Average rectified current500 mA
Forward voltage385 mVMax · 500 mA
TypeSchottkyFast Recovery =< 500ns，> 200mA (Io)
Power
Current - Average Rectified (Io)500mA
Current - Reverse Leakage @ Vr250 µA @ 20 V
Voltage - DC Reverse (Vr) (Max)20 V
Voltage - Forward (Vf) (Max) @ If385 mV @ 500 mA
Environment and package
Mounting TypeSurface Mount
Operating Temperature - Junction-65°C~125°C
PackageBulk
Package / CaseSOD-123
Supplier Device PackageSOD-123
Other
Base Product NumberMBR0520
Capacitance @ Vr, F-
Diode TypeSchottky
Mfronsemi
Product StatusObsolete
Series-
SpeedFast Recovery =< 500ns, > 200mA (Io)

Documents

No documents are linked to this part yet.
