Bel Power SolutionsUnited States

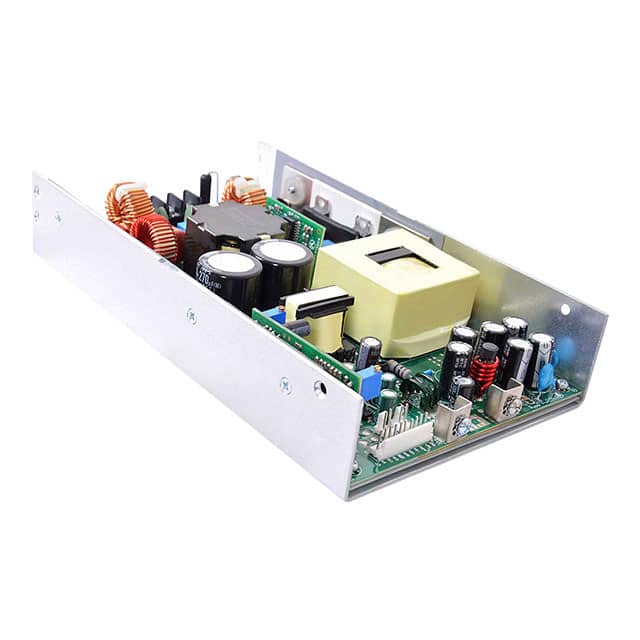

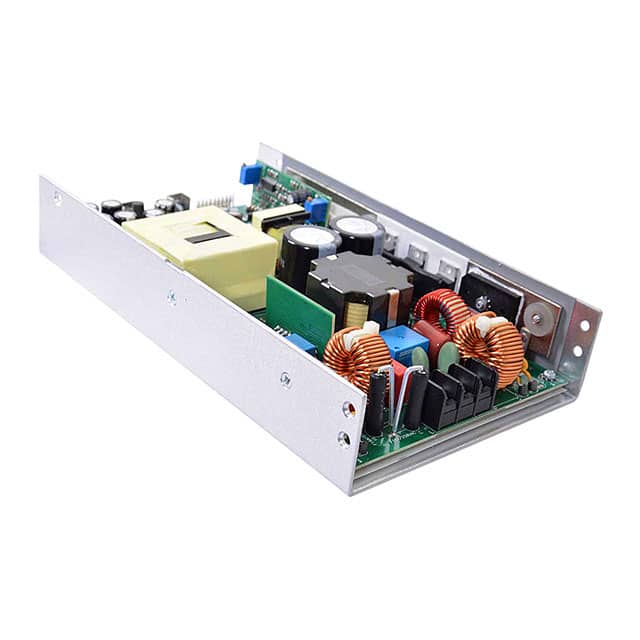

OPEN FRAME POWER SUPPLY 800W 12V
All alternatives
View full reportTechnical parameters
Key specs
Input voltage85 ~ 264 V
Output voltage12 V
Output current25 AMax
Power300 WMax
Outputs1
| Power | |
|---|---|
| Current - Output 1 | 25 A |
| Power (Watts) | 300W (400W Forced Air) |
| Voltage - Input | 85 ~ 264 VAC, 120 ~ 390 VDC |
| Voltage - Isolation | 4.245 kV |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C~70°C(WithDerating) |
| Package | Box |
| Size / Dimension | 8.50" L x 5.00" W x 1.61" H (216.0mm x 127.0mm x 41.0mm) |
| Other | |
| Applications | Medical |
| Approval Agency | CE, cUL, Nemko, UL |
| Base Product Number | MBC800 |
| Efficiency | 93% |
| Features | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input |
| Mfr | Bel Power Solutions |
| Minimum Load Required | No |
| Number of Outputs | 1 |
| Product Status | Obsolete |
| Series | MBC800 (800W) |
| Type | Open Frame |
