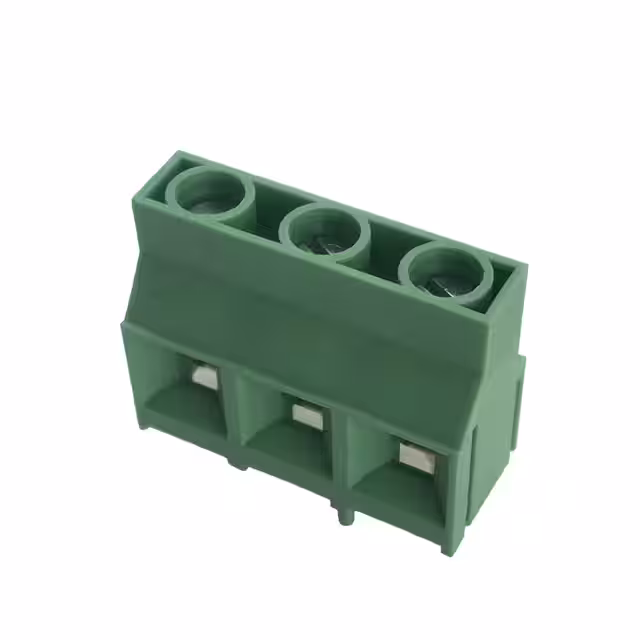

PCB TERMINAL BLOCK WITH STANDOFF
All alternatives
View full reportTechnical parameters
Key specs
Pitch9.53 mm
| Power | |
|---|---|
| Current | 30 A |
| Voltage | 600 V |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~105°C |
| Package | Bag |
| Other | |
| Base Product Number | MB910 |
| Clamp Material - Plating | Steel - Nickel Plated |
| Color | Green |
| Contact Material - Plating | Brass - Tin Plated |
| Features | Interlocking (Side) |
| Housing Material | Polyamide (PA66), Nylon 6/6 |
| Mating Orientation | Horizontal with Board |
| Mfr | Deca |
| Number of Levels | 1 |
| Pitch | 0.375" (9.53mm) |
| Positions Per Level | 3 |
| Product Status | Active |
| Screw Material - Plating | Steel - Nickel Plated |
| Screw Thread | M3 |
| Series | - |
| Torque - Screw | 1.0 Nm (8.9 Lb-In) |
| Wire Gauge | 10-24 AWG |
| Wire Termination | Screw - Rising Cage Clamp |
