Diotec SemiconductorGermany

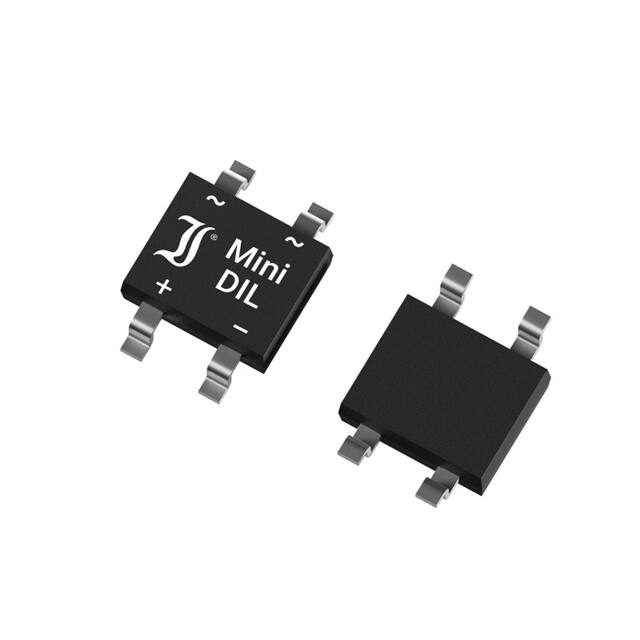

BRIDGE RECT 1PH 400V TO269AA
All alternatives
View full reportTechnical parameters
Key specs
Reverse voltage400 V
Average rectified current500 mA
Forward voltage1 VMax · 400 mA
TypeStandard
| Power | |
|---|---|
| Current - Average Rectified (Io) | 500 mA |
| Current - Reverse Leakage @ Vr | 5 µA @ 400 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 400 mA |
| Voltage - Peak Reverse (Max) | 400 V |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -50°C~150°C(TJ) |
| Package | Strip |
| Package / Case | TO-269AA, 4-BESOP |
| Supplier Device Package | TO-269AA MINIDIL SLIM |
| Other | |
| Diode Type | Single Phase |
| Mfr | Diotec Semiconductor |
| Product Status | Active |
| Series | - |
| Technology | Standard |
