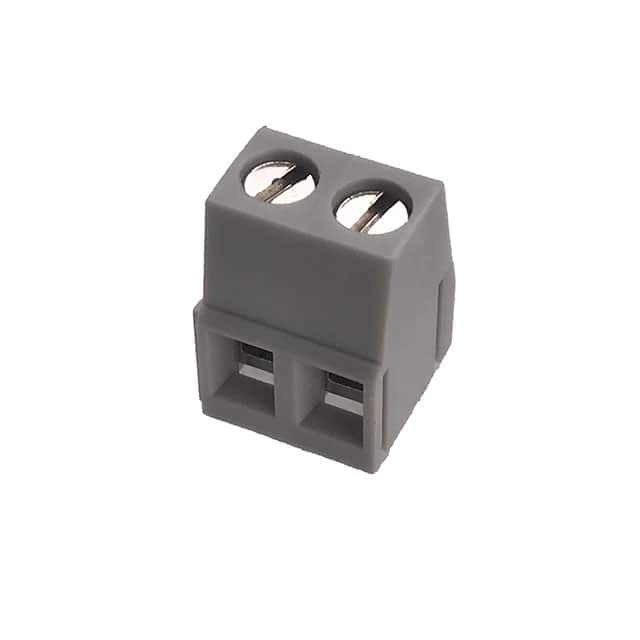

PCB TERMINAL BLOCK, 5.00MM, 2 PO
All alternatives
View full reportTechnical parameters
Key specs
Pitch5 mm
| Power | |
|---|---|
| Current | 16 A |
| Voltage | 300 V |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~105°C |
| Package | Bag |
| Other | |
| Base Product Number | MB312 |
| Clamp Material - Plating | Brass - Nickel Plated |
| Color | Green |
| Contact Material - Plating | Brass - Tin Plated |
| Features | - |
| Housing Material | Polyamide (PA66), Nylon 6/6 |
| Mating Orientation | Horizontal with Board |
| Mfr | Deca |
| Number of Levels | 1 |
| Pitch | 0.197" (5.00mm) |
| Positions Per Level | 2 |
| Product Status | Active |
| Screw Material - Plating | Steel - Zinc Plated |
| Screw Thread | M2.6 |
| Series | - |
| Torque - Screw | 0.56 Nm (5.0 Lb-In) |
| Wire Gauge | 12-26 AWG |
| Wire Termination | Screw - Rising Cage Clamp |
