Analog Devices Inc./Maxim IntegratedUnited States
IC REG CHARGE PUMP ADJ 8SOIC
All alternatives
View full reportTechnical parameters
Key specs
Input voltage2.7 ~ 5.5 V
Output voltage-2.5 ~ -5.5 V
Output current200 mAMax
Switching frequency500 kHz
| Power | |
|---|---|
| Current - Output | 200mA |
| Voltage - Input (Max) | 5.5V |
| Voltage - Input (Min) | 2.7V |
| Voltage - Output (Max) | -5.5V |
| Voltage - Output (Min/Fixed) | -2.5V |
| AC and DC characteristics | |
| Frequency - Switching | 500kHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C(TA) |
| Package | Tube |

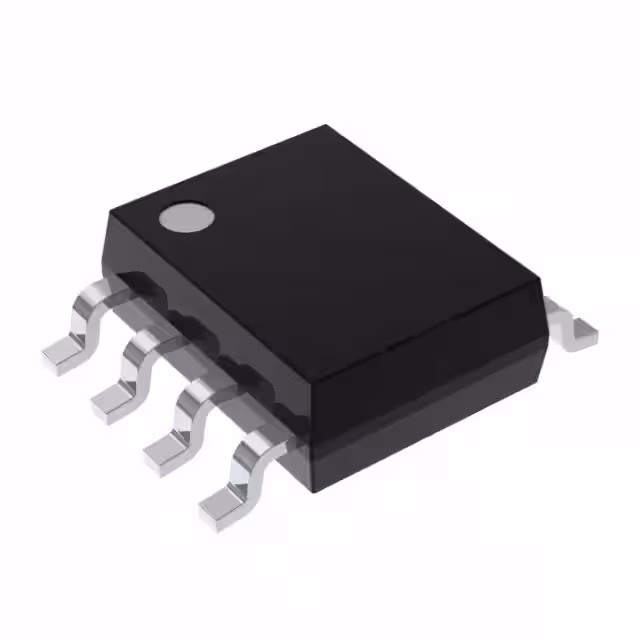

| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Other | |
| Base Product Number | MAX889 |
| Function | Step-Down |
| Mfr | Analog Devices Inc./Maxim Integrated |
| Number of Outputs | 1 |
| Output Configuration | Negative |
| Output Type | Adjustable |
| Product Status | Active |
| Series | - |
| Synchronous Rectifier | No |
| Topology | Charge Pump |
