Analog Devices Inc./Maxim IntegratedUnited States

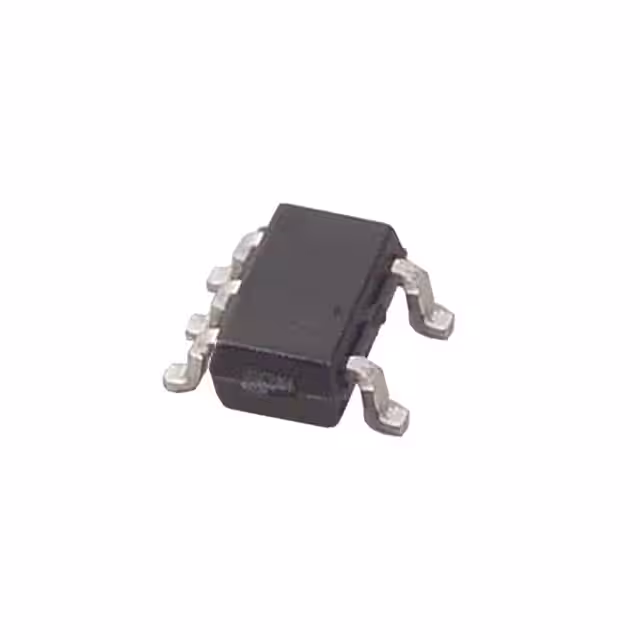

IC REG LINEAR 4.5V 150MA SC70-5
All alternatives
View full reportTechnical parameters
Key specs
Output voltage4.5 V
Output current150 mAMax
Input voltage≤ 6 V
Dropout voltage120 mVMax · 120mA (Typ)
Quiescent current40 µATyp
| Power | |
|---|---|
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 40 µA |
| Voltage Dropout (Max) | 0.12V @ 120mA (Typ) |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 4.5V |
| AC and DC characteristics | |
| PSRR | 65dB (10kHz) |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C(TA) |
| Package | Strip |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Supplier Device Package | SC-70-5 |
| Other | |
| Base Product Number | MAX889 |
| Control Features | Enable |
| Mfr | Analog Devices Inc./Maxim Integrated |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Type | Fixed |
| Product Status | Active |
| Protection Features | Over Current, Over Temperature |
| Series | - |
