Analog Devices Inc./Maxim IntegratedUnited States

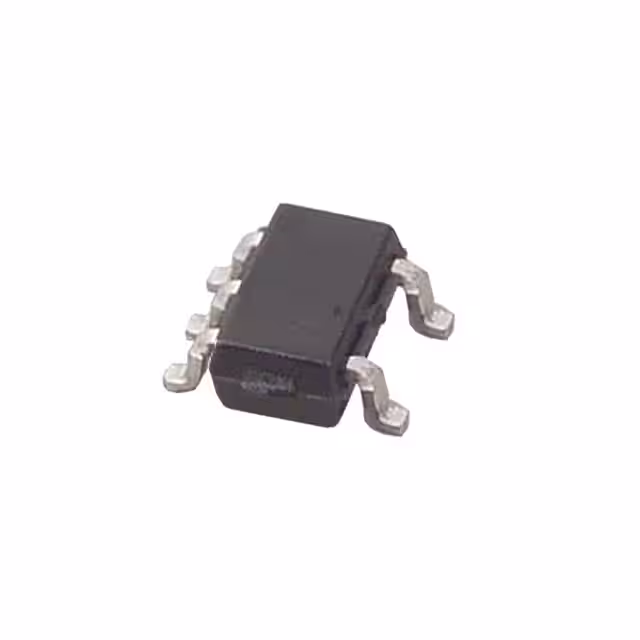

IC REG LINEAR 2.6V 150MA SC70
All alternatives
View full reportTechnical parameters
Key specs
Output voltage2.6 V
Output current150 mAMax
Input voltage≤ 6 V
Dropout voltage135 mVMax · 120mA (Typ)
| Power | |
|---|---|
| Current - Output | 150mA |
| Voltage Dropout (Max) | 0.135V @ 120mA (Typ) |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 2.6V |
| AC and DC characteristics | |
| PSRR | 65dB (10kHz) |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C(TA) |
| Package | Tube |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Supplier Device Package | SC-70-5 |
| Other | |
| Control Features | Enable |
| Mfr | Analog Devices Inc./Maxim Integrated |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Type | Fixed |
| Product Status | Obsolete |
| Protection Features | Over Current, Over Temperature |
| Series | - |
