Analog Devices Inc./Maxim IntegratedUnited States
IC REG LINEAR POS ADJ 5A 10UMAX
All alternatives
View full reportTechnical parameters
Key specs
Output voltage500 mV ~ 5.5 V
Output current5 AMax
Input voltage≤ 5.5 V
Quiescent current10 µATyp
| Power | |
|---|---|
| Current - Output | 5A |
| Current - Quiescent (Iq) | 10 µA |
| Current - Supply (Max) | 3 mA |
| Voltage Dropout (Max) | - |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 0.5V (1.2V, 1.5V) |
| AC and DC characteristics | |
| PSRR | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C |
| Package | Tube |

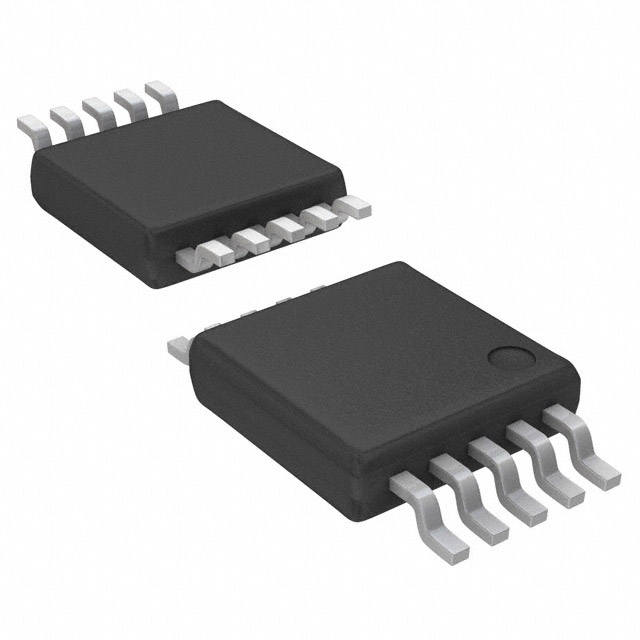

| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-uMAX/uSOP |
| Other | |
| Base Product Number | MAX8704 |
| Control Features | Enable, Power Good, Power Limit, Soft Start |
| Mfr | Analog Devices Inc./Maxim Integrated |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Type | Adjustable (Fixed) |
| Product Status | Obsolete |
| Protection Features | Over Temperature, Under Voltage Lockout (UVLO) |
| Series | - |
