Analog Devices Inc./Maxim IntegratedUnited States

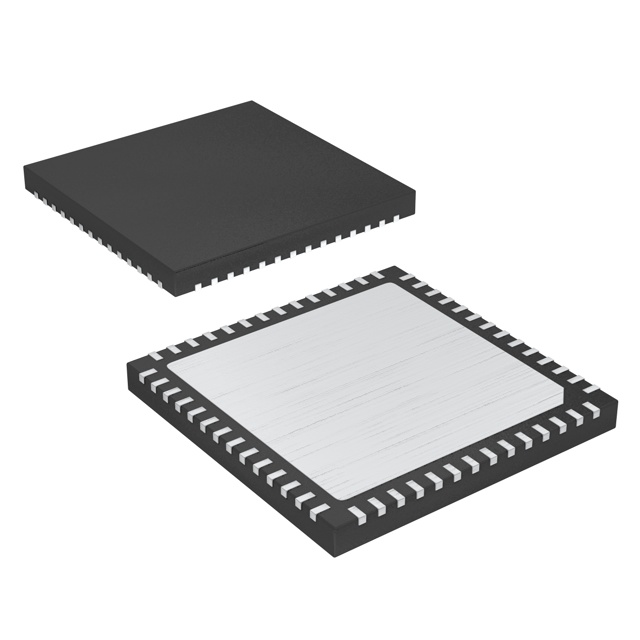

IC REG BUCK ADJ 25A 56TQFN
All alternatives
View full reportTechnical parameters
Key specs
Input voltage4.5 ~ 25 V
Output voltage700 mV ~ 5.5 V
Output current25 AMax
Switching frequency200 kHz ~ 1 MHz
| Power | |
|---|---|
| Current - Output | 25A |
| Voltage - Input (Max) | 25V |
| Voltage - Input (Min) | 4.5V |
| Voltage - Output (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 0.7V |
| AC and DC characteristics | |
| Frequency - Switching | 200kHz ~ 1MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Package | Tray |
| Package / Case | 56-WFQFN Exposed Pad |
| Supplier Device Package | 56-TQFN (8x8) |
| Other | |
| Base Product Number | MAX8655 |
| Function | Step-Down |
| Mfr | Analog Devices Inc./Maxim Integrated |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Product Status | Active |
| Series | - |
| Synchronous Rectifier | Yes |
| Topology | Buck |
