Analog Devices Inc./Maxim IntegratedUnited States
IC REG BUCK ADJUSTABLE 8A 36TQFN
All alternatives
View full reportTechnical parameters
Key specs
Input voltage4.5 ~ 14 V
Output voltage600 mV ~ 11.9 V
Output current8 AMax
Switching frequency250 kHz ~ 1.2 MHz
| Power | |
|---|---|
| Current - Output | 8A |
| Voltage - Input (Max) | 14V |
| Voltage - Input (Min) | 4.5V |
| Voltage - Output (Max) | 11.9V |
| Voltage - Output (Min/Fixed) | 0.6V |
| AC and DC characteristics | |
| Frequency - Switching | 250kHz ~ 1.2MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C(TA) |
| Package | Tape & Reel (TR) |

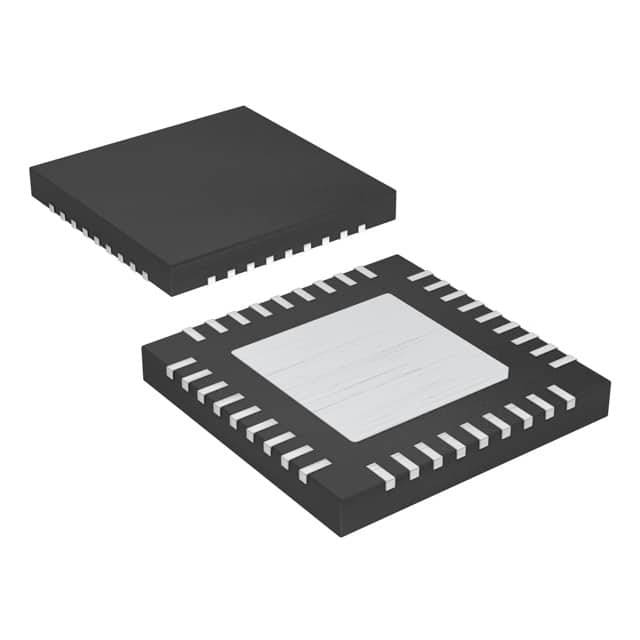

| Package / Case | 36-WFQFN Exposed Pad |
| Supplier Device Package | 36-TQFN (6x6) |
| Other | |
| Base Product Number | MAX8654 |
| Function | Step-Down |
| Mfr | Analog Devices Inc./Maxim Integrated |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Product Status | Active |
| Series | - |
| Synchronous Rectifier | No |
| Topology | Buck |
