Analog Devices Inc./Maxim IntegratedUnited States

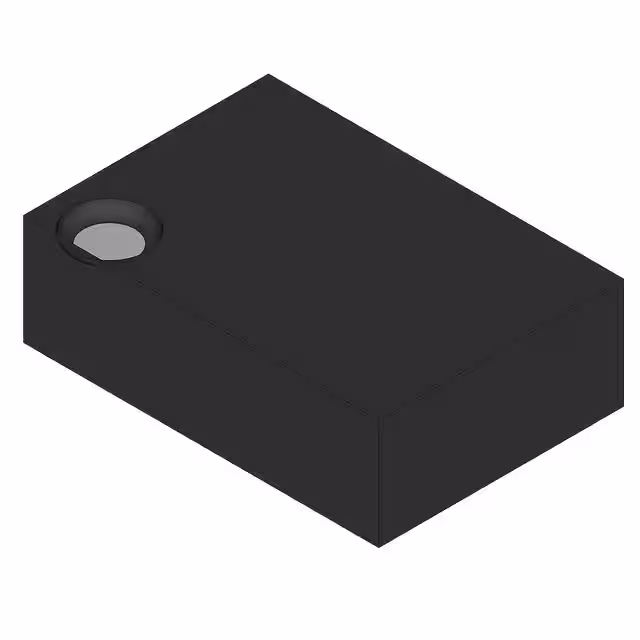

IC REG LINEAR DUAL LDO
All alternatives
View full reportTechnical parameters
Key specs
Output voltage1.8 V
Output current150 mAMax
Input voltage≤ 6.5 V
Dropout voltage200 mVMax · 100mA
Quiescent current220 µATyp
| Power | |
|---|---|
| Current - Output | 200mA, 150mA |
| Current - Quiescent (Iq) | 220 µA |
| Voltage Dropout (Max) | 0.2V @ 100mA |
| Voltage - Input (Max) | 6.5V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 2.5V, 1.8V |
| AC and DC characteristics | |
| PSRR | 60dB (100Hz) |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C(TA) |
| Package | Bulk |
| Package / Case | 6-WDFN Exposed Pad |
| Supplier Device Package | 6-TDFN (3x3) |
| Other | |
| Control Features | Enable, Reset |
| Mfr | Analog Devices Inc./Maxim Integrated |
| Number of Regulators | 2 |
| Output Configuration | Positive |
| Output Type | Fixed |
| Product Status | Active |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Series | - |
