Analog Devices Inc./Maxim IntegratedUnited States

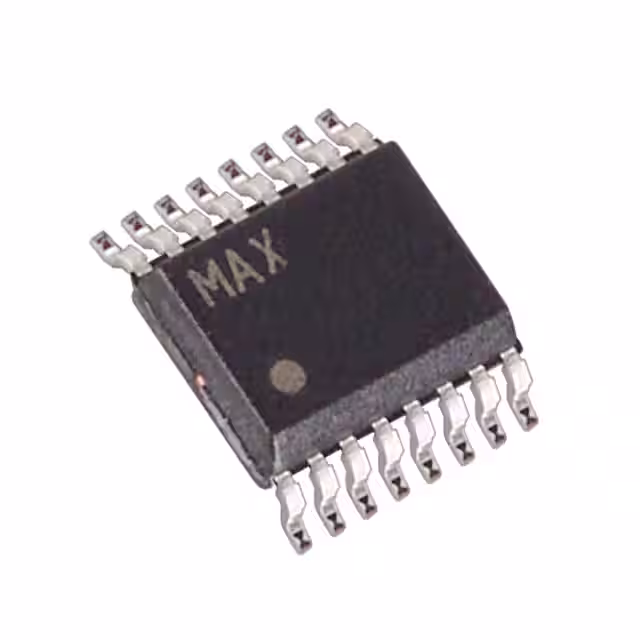

IC REG BUCK ADJUSTABLE 3A 16QSOP
All alternatives
View full reportTechnical parameters
Key specs
Input voltage2.6 ~ 5.5 V
Output voltage800 mV ~ 4.68 V
Output current3 AMax
Switching frequency500 kHz ~ 1 MHz
| Power | |
|---|---|
| Current - Output | 3A |
| Voltage - Input (Max) | 5.5V |
| Voltage - Input (Min) | 2.6V |
| Voltage - Output (Max) | 4.68V |
| Voltage - Output (Min/Fixed) | 0.8V |
| AC and DC characteristics | |
| Frequency - Switching | 500kHz, 1MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C(TA) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 16-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 16-QSOP |
| Other | |
| Base Product Number | MAX8505 |
| Function | Step-Down |
| Mfr | Analog Devices Inc./Maxim Integrated |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Product Status | Active |
| Series | - |
| Synchronous Rectifier | Yes |
| Topology | Buck |
