Analog Devices Inc./Maxim IntegratedUnited States

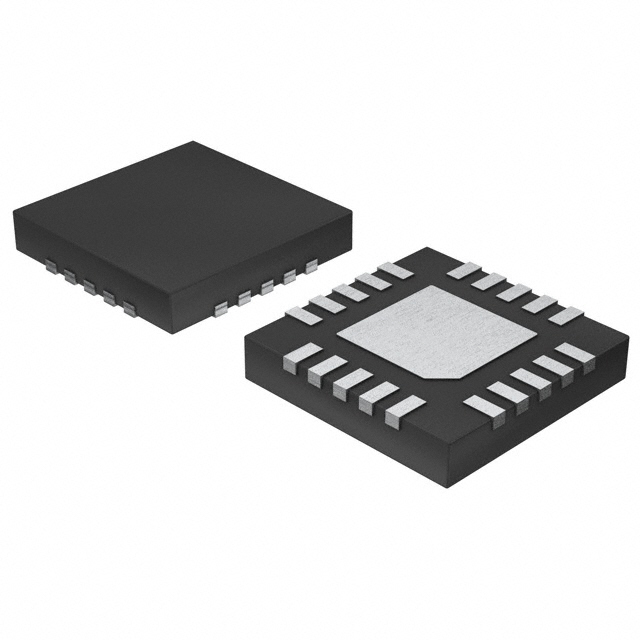

IC PWR DRIVER N-CHAN 1:8 20TQFN
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Output (Max) | 70mA |
| Voltage - Load | 2.3V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Package | Tube |
| Package / Case | 20-WFQFN Exposed Pad |
| Supplier Device Package | 20-TQFN (4x4) |
| Other | |
| Base Product Number | MAX4823 |
| Fault Protection | - |
| Features | - |
| Input Type | Non-Inverting |
| Interface | SPI |
| Mfr | Analog Devices Inc./Maxim Integrated |
| Number of Outputs | 8 |
| Output Configuration | Low Side |
| Output Type | N-Channel |
| Product Status | Active |
| Ratio - Input:Output | 1:8 |
| Rds On (Typ) | 2.7Ohm |
| Series | - |
| Switch Type | Relay, Solenoid Driver |
Documents
No documents are linked to this part yet.
