Analog Devices Inc./Maxim IntegratedUnited States

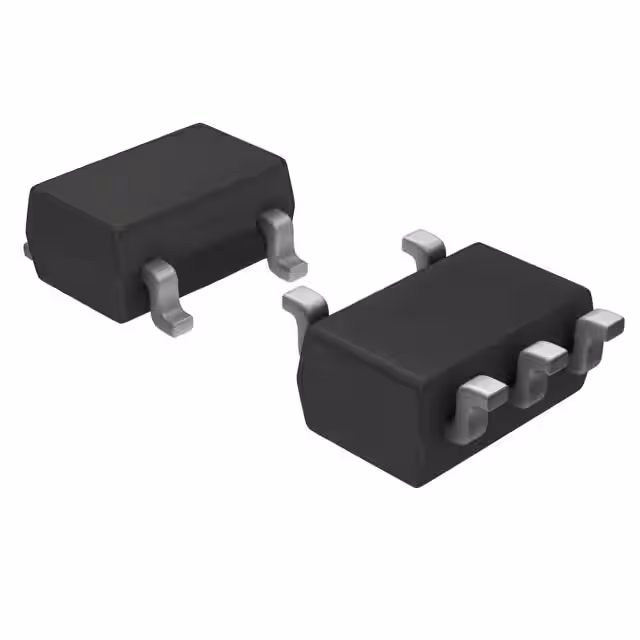

IC OPAMP GP 1 CIRCUIT SOT23-5
All alternatives
View full reportTechnical parameters
Key specs
Supply voltage2.7 ~ 6 V
Gain bandwidth product500 kHzTyp
Input offset voltage30 µVTyp
Quiescent current130 µATyp
Channels1
| Power | |
|---|---|
| Current - Input Bias | 20 nA |
| Current - Supply | 130µA |
| Voltage - Supply Span (Max) | 6 V |
| Voltage - Supply Span (Min) | 2.7 V |
| AC and DC characteristics | |
| Gain Bandwidth Product | 500 kHz |
| Slew Rate | 0.2V/µs |
| Voltage - Input Offset | 30 µV |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~125°C |
| Package | Bulk |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| Other | |
| Amplifier Type | General Purpose |
| Base Product Number | MAX409 |
| Mfr | Analog Devices Inc./Maxim Integrated |
| Number of Circuits | 1 |
| Output Type | Rail-to-Rail |
| Product Status | Obsolete |
| Series | - |
Documents
No documents are linked to this part yet.
