Analog Devices Inc./Maxim IntegratedUnited States
IC VCO OSCILLATOR UMAX
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Power (dBm) | -3 ±3 |
| Tuning Voltage (VDC) | 0.4 V ~ 2.4 V |
| Voltage - Supply | 2.7V ~ 5.5V |
| AC and DC characteristics | |
| Frequency - Center | 868MHz |
| Frequency Range | 855 ~ 881MHz |
| Phase Noise Typ (dBc/Hz) | - |
| Environment and package | |
| Height | 0.043" (1.10mm) |
| Operating Temperature | -40°C~85°C |
| Package | Tape & Reel (TR) |

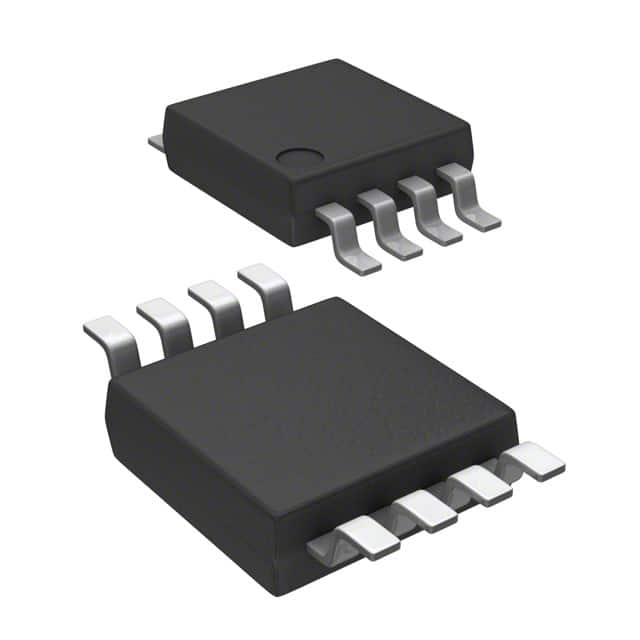

| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Other | |
| 2nd Harmonic, Typ (dBc) | -27 |
| Base Product Number | MAX262 |
| Icc Max | 11.5mA |
| Mfr | Analog Devices Inc./Maxim Integrated |
| Product Status | Obsolete |
| Pushing (MHz/V) | 0.28 (Typ) |
| Series | MAX2622 |
