Analog Devices Inc./Maxim IntegratedUnited States
16-BIT MULTICHANNEL DAS
All alternatives
View full reportTechnical parameters
Key specs
Resolution16 bit
Sampling rate60 SPSMax
Inputs4
InterfaceQSPI / OSPI
Supply voltage1.8 ~ 3.6 V
| Power | |
|---|---|
| Voltage - Supply, Analog | 1.8V ~ 3.6V, 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 1.8V ~ 3.6V, 2.7V ~ 3.6V |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C~70°C |
| Package | Bulk |

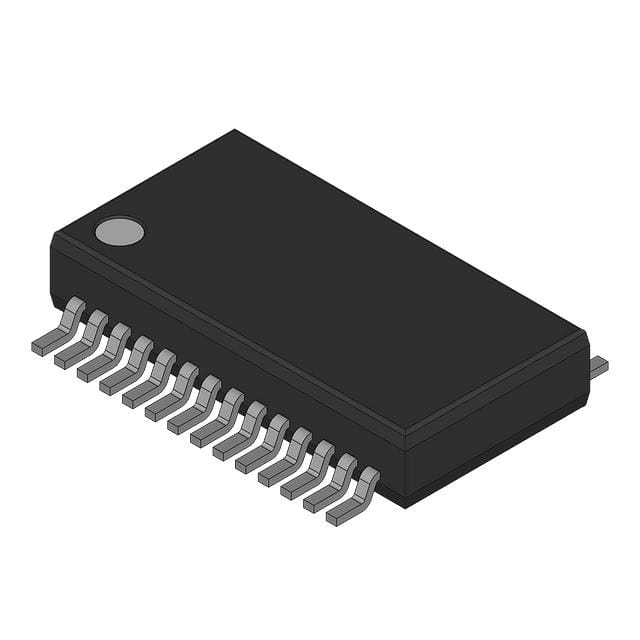

| Package / Case | 28-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 28-SSOP |
| Other | |
| Architecture | Sigma-Delta |
| Configuration | MUX-PGA-ADC |
| Data Interface | Microwire, QSPI, SPI |
| Features | PGA |
| Input Type | Differential |
| Mfr | Analog Devices Inc./Maxim Integrated |
| Number of A/D Converters | 1 |
| Number of Bits | 16 |
| Number of Inputs | 4 |
| Product Status | Active |
| Ratio - S/H:ADC | 0:1 |
| Reference Type | External, Internal |
| Sampling Rate (Per Second) | 60 |
| Series | - |
