MARR-5-17-28
Littelfuse Inc.United States

MARR-5-17-28

ObsoleteMagnetic, Reed Switches

SWITCH REED SPST-NO 350MA 700V

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Power
Current - Carry1.3A (DC)
Current - Switching350mA (AC), 500mA (DC)
Power - Rated10W
Voltage - Switching AC265 V
Voltage - Switching DC1000 V
Environment and package
Height Above Board-
Mounting TypeThrough Hole
Operating Temperature-75°C~125°C
PackageBox

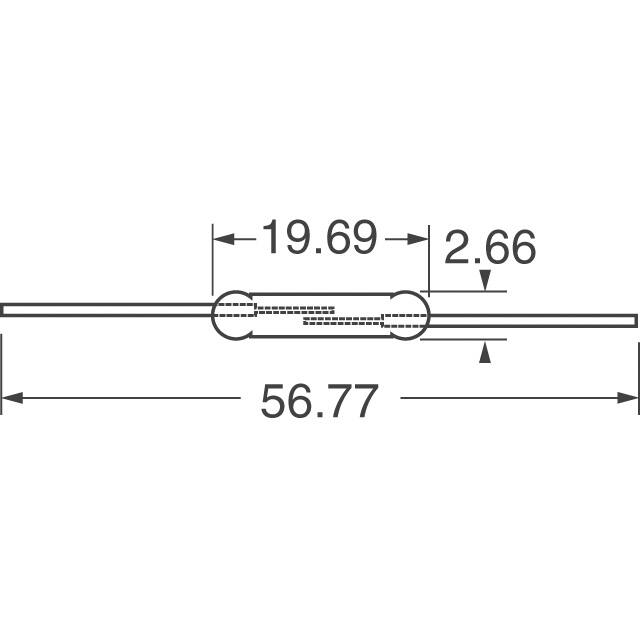

Size - Body0.105" Dia x 0.775" L (2.66mm x 19.69mm)
Other
Capacitance0.2 pF
CircuitSPST-NO
Length - Overall2.235" (56.77mm)
MfrLittelfuse Inc.
Operate Range17 ~ 28AT
Operate Time0.75 ms
Product StatusObsolete
Release Range-
Release Time0.3 ms
SeriesMARR-5
Termination StyleAxial
TypeGlass Body Reed
