View full reportTechnical parameters
| AC and DC characteristics | |
|---|---|
| Frequency (Center/Band) | 2.4GHz, 5.5GHz |
| Frequency Group | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) |
| Frequency Range | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz |
| Gain | 3dBi, 4dBi |
| Environment and package | |
| Height (Max) | 0.236" (6.00mm) |
| Mounting Type | Surface Mount |
| Other | |

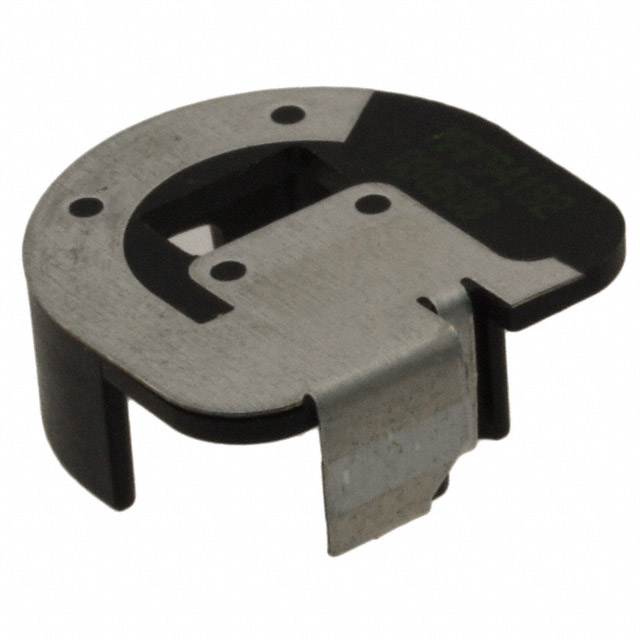

| Antenna Type | Stamped Metal |
| Applications | WiMax™ |
| Features | - |
| Ingress Protection | - |
| Manufacturer | Ezurio LLC |
| Number of Bands | 2 |
| Packaging | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Part Status | Obsolete |
| Return Loss | - |
| RF Family/Standard | WiFi |
| Series | D-Puck |
| Termination | Solder |
| VSWR | 2.5 |
