Ethertronics/AVXUnited States

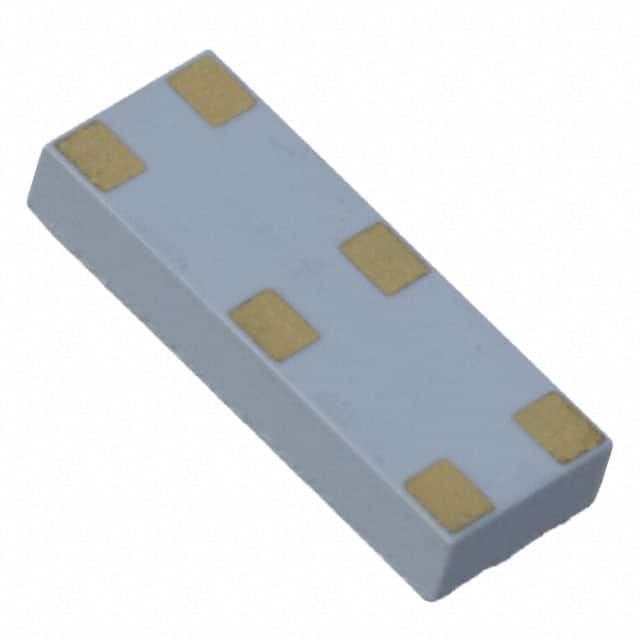

RF ANT 2.4GHZ/5.4GHZ CHIP SLD
All alternatives
View full reportTechnical parameters
| AC and DC characteristics | |
|---|---|
| Frequency (Center/Band) | 2.4GHz, 5.4GHz |
| Frequency Group | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) |
| Frequency Range | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.8GHz |
| Gain | 1.1dBi, 3.2dBi |
| Environment and package | |
| Height (Max) | 0.052" (1.33mm) |
| Mounting Type | Surface Mount |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Other | |
| Antenna Type | Chip |
| Applications | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
| Features | - |
| Ingress Protection | - |
| Mfr | Ethertronics/AVX |
| Number of Bands | 2 |
| Product Status | Obsolete |
| Return Loss | - |
| RF Family/Standard | 802.15.4, Bluetooth, WiFi |
| Series | Savvi™ |
| Termination | Solder |
| VSWR | 2.6, 3 |
