NKK SwitchesJapan

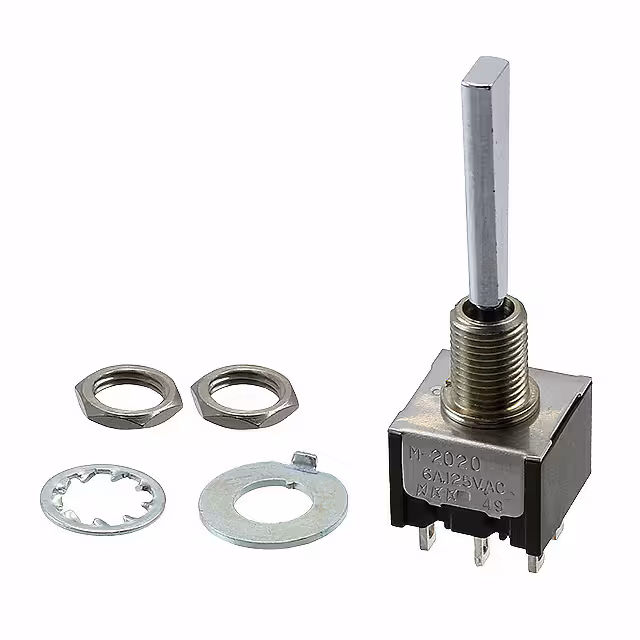

SWITCH TOGGLE SP3T 6A 125V
All alternatives
View full reportTechnical parameters
Key specs
Switch functionOn-On
Current rating6 AMax
Voltage rating125 VMax
| Power | |
|---|---|
| Current Rating (Amps) | 6A (AC), 3A (DC) |
| Illumination Voltage (Nominal) | - |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
| Environment and package | |
| Mounting Type | Panel Mount |
| Operating Temperature | -30°C~85°C |
| Package | Bulk |
| Panel Cutout Dimensions | Circular - 6.50mm Dia |
| Other | |
| Actuator Length | 21.30mm |
| Actuator Material | Brass, Chrome Plated |
| Actuator Type | Flatted |
| Base Product Number | M2024E4 |
| Bushing Thread | 1/4-40 |
| Circuit | SP3T |
| Electrical Life | 25,000 Cycles |
| Features | Jumper needed to achieve triple throw |
| Illumination | Non-Illuminated |
| Illumination Type, Color | - |
| Ingress Protection | - |
| Mfr | NKK Switches |
| Product Status | Obsolete |
| Series | M |
| Switch Function | On-On-On |
| Termination Style | Solder Lug |
