OSRAM SYLVANIA Inc.Germany

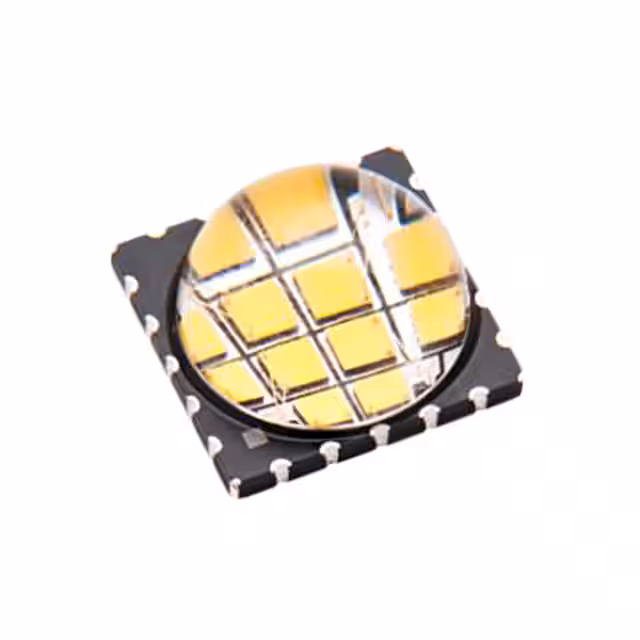

LED WARM WHITE 3000K 98CRI 24SMD
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Max | 1A |
| Current - Test | 700mA |
| Flux @ 25°C, Current - Test | 1391lm (1085lm ~ 1696lm) |
| Flux @ 85°C, Current - Test | - |
| Lumens/Watt @ Current - Test | 51 lm/W |
| Voltage - Forward (Vf) (Typ) | 38.8V |
| Environment and package | |
| Height - Seated (Max) | 0.220" (5.60mm) |
| Mounting Type | Surface Mount |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 24-SMD, No Lead Exposed Pad |
| Size / Dimension | 0.354" L x 0.354" W (9.00mm x 9.00mm) |
| Supplier Device Package | SMD |
| Thermal Resistance of Package | 0.7°C/W |
| Other | |
| CCT (K) | 3000K 3-Step MacAdam Ellipse |
| Color | White, Warm |
| CRI (Color Rendering Index) | 98 |
| Mfr | OSRAM SYLVANIA Inc. |
| Product Status | Obsolete |
| Series | LuxiGen™ LZC |
| Viewing Angle | 110° |
