OSRAM SYLVANIA Inc.Germany

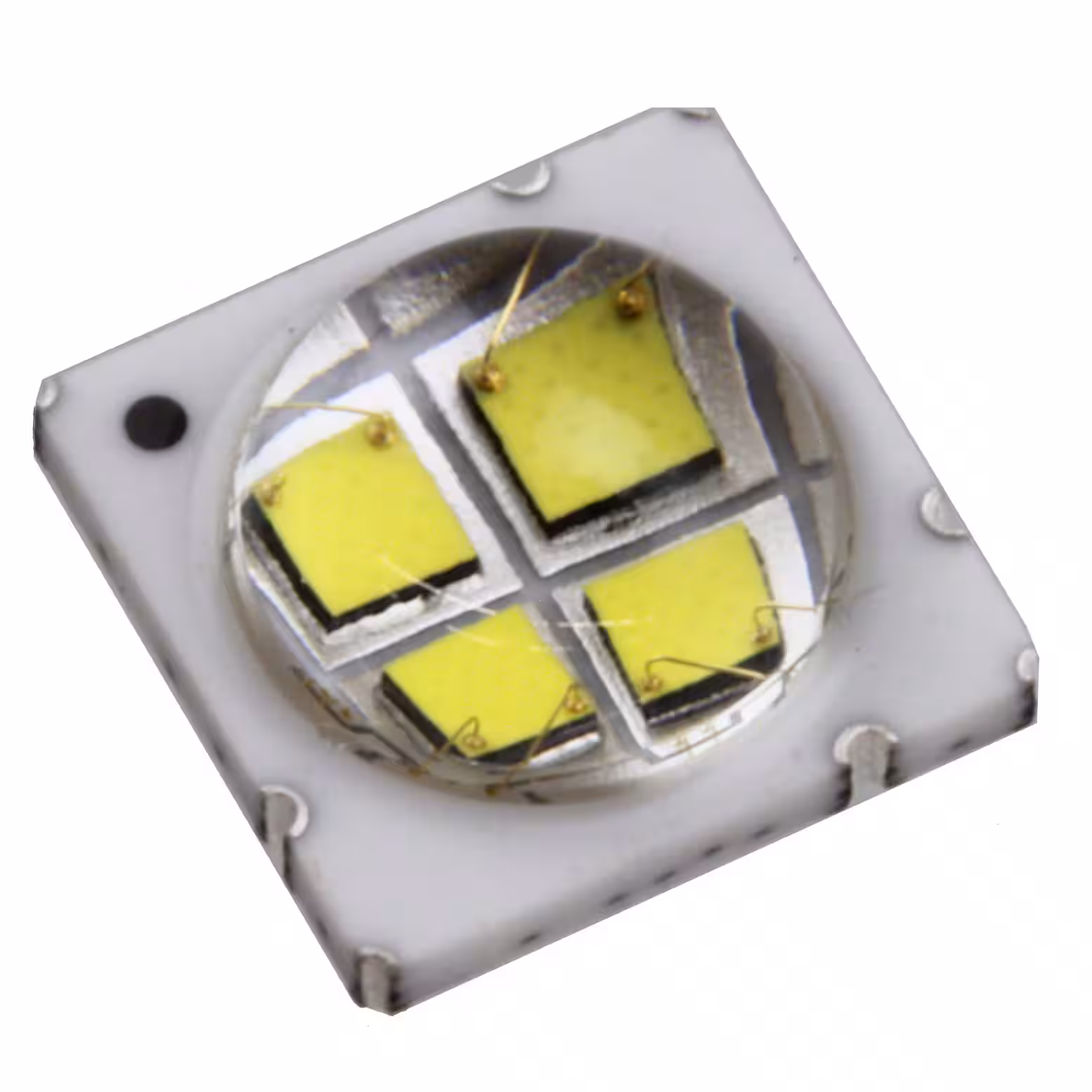

LED NEUTRAL WHT 4000K 82CRI 8SMD
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Max | 1A |
| Current - Test | 700mA |
| Flux @ 25°C, Current - Test | 626lm (556lm ~ 695lm) |
| Flux @ 85°C, Current - Test | - |
| Lumens/Watt @ Current - Test | 71 lm/W |
| Voltage - Forward (Vf) (Typ) | 12.6V |
| Environment and package | |
| Height - Seated (Max) | 0.154" (3.90mm) |
| Mounting Type | Surface Mount |
| Package | Tape & Reel (TR) |
| Package / Case | 2828 (7070 Metric) |
| Size / Dimension | 0.276" L x 0.276" W (7.00mm x 7.00mm) |
| Supplier Device Package | SMD |
| Thermal Resistance of Package | 2.8°C/W |
| Other | |
| CCT (K) | 4000K |
| Color | White, Neutral |
| CRI (Color Rendering Index) | 82 (Typ) |
| Mfr | OSRAM SYLVANIA Inc. |
| Product Status | Obsolete |
| Series | LZ4 |
| Viewing Angle | 90° |
