LumiledsNetherlands

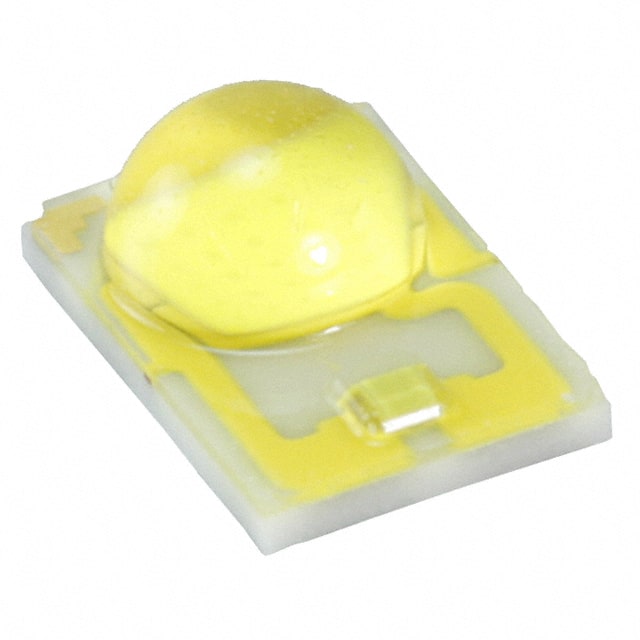

LED LUXEON COOL WHITE 5000K 3SMD
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Max | 1A |
| Current - Test | 700mA |
| Flux @ 25°C, Current - Test | 200lm (Typ) |
| Flux @ 85°C, Current - Test | - |
| Lumens/Watt @ Current - Test | 99 lm/W |
| Voltage - Forward (Vf) (Typ) | 2.9V |
| Environment and package | |
| Height - Seated (Max) | 0.083" (2.10mm) |
| Mounting Type | Surface Mount |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 1812 (4532 Metric) |
| Size / Dimension | 0.177" L x 0.120" W (4.49mm x 3.05mm) |
| Supplier Device Package | - |
| Thermal Resistance of Package | 6°C/W |
| Other | |
| Base Product Number | LXW8 |
| CCT (K) | 5000K |
| Color | White, Cool |
| CRI (Color Rendering Index) | 80 |
| Mfr | Lumileds |
| Product Status | Obsolete |
| Series | LUXEON Rebel ES |
| Viewing Angle | 120° |
Documents
No documents are linked to this part yet.
