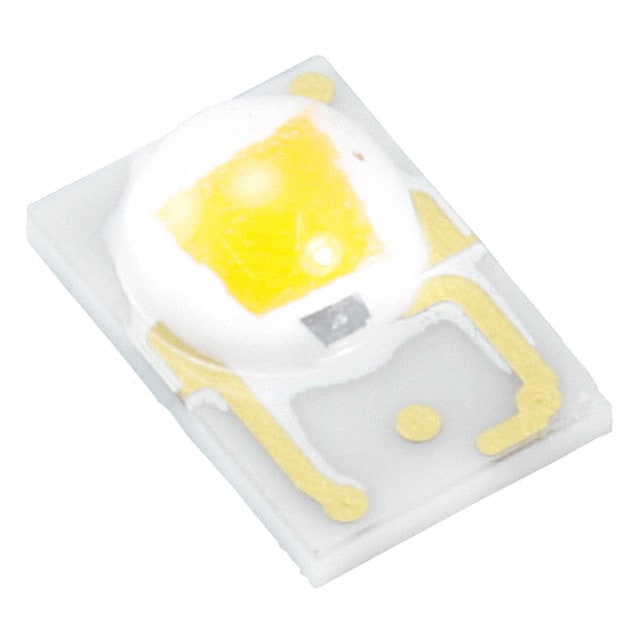

LXML-PL01-0040
LumiledsNetherlands

LXML-PL01-0040

ActiveLED Lighting - Color

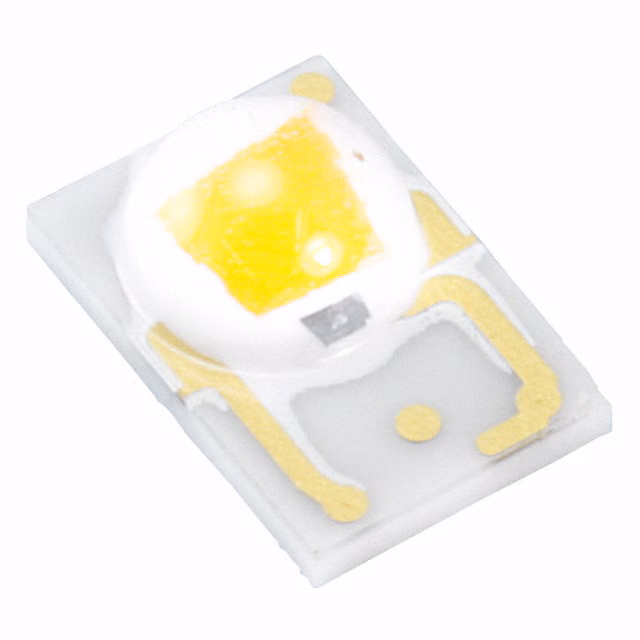

LED LUXEON REBEL AMBER 590NM SMD

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Current - Max700mA
Current - Test350mA
Lumens/Watt @ Current - Test60 lm/W
Voltage - Forward (Vf) (Typ)2.1V
Environment and package
Height - Seated (Max)0.083" (2.10mm)
Luminous Flux @ Current/Temperature44lm(40lm~48lm)
Mounting TypeSurface Mount
PackageTape & Reel (TR)
Package / Case1812 (4532 Metric)
Size / Dimension0.177" L x 0.120" W (4.49mm x 3.05mm)
Supplier Device PackageSMD
Temperature - Test25°C
Thermal Resistance of Package12°C/W
Other
Base Product NumberLXML-PL01
ColorAmber
MfrLumileds
Product StatusActive
SeriesLUXEON Rebel Color
Viewing Angle125°
Wavelength590nm (Typ)
