Lite-On Inc.Taiwan, China

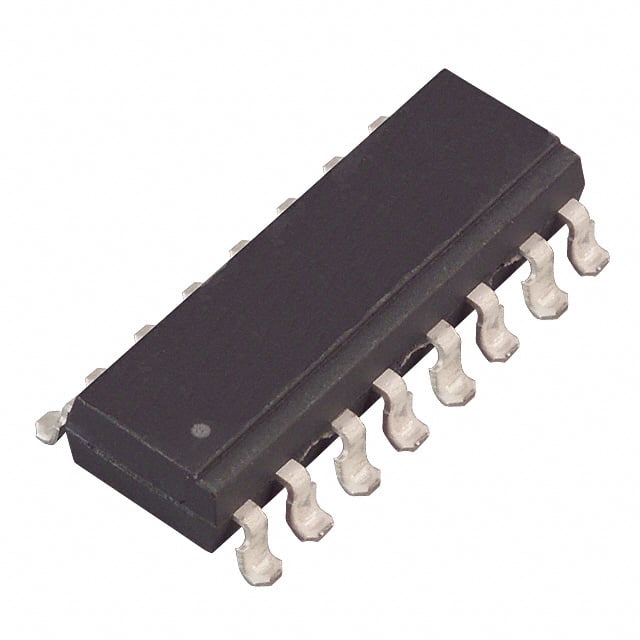

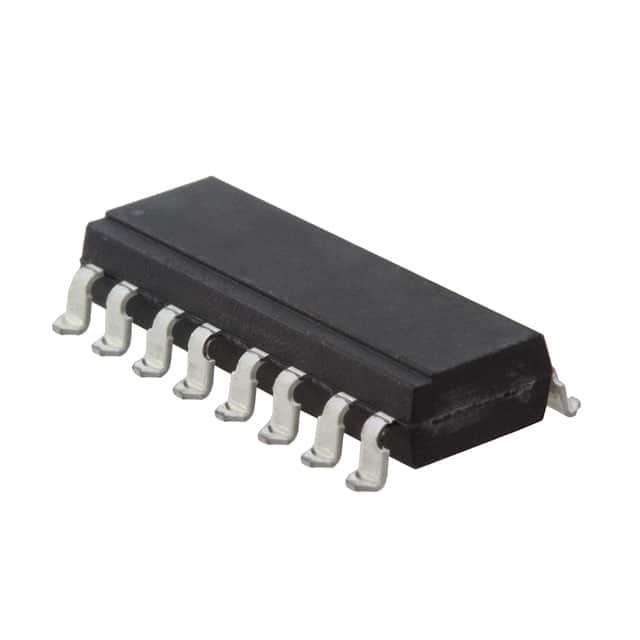

OPTOISOLTR 5KV 4CH TRANS 16-SMD
All alternatives
View full reportTechnical parameters
Key specs
Channels4
Isolation voltage5 kV
Output typeTransistor
Current transfer ratio20 %100mA
| Power | |
|---|---|
| Current - DC Forward (If) (Max) | 150 mA |
| Current - Output / Channel | 80mA |
| Current Transfer Ratio (Max) | 80% @ 100mA |
| Current Transfer Ratio (Min) | 20% @ 100mA |
| Number of Channels | 4 |
| Voltage - Forward (Vf) (Typ) | 1.4V |
| Voltage - Isolation | 5000Vrms |
| Voltage - Output (Max) | 35V |
| AC and DC characteristics | |
| Rise / Fall Time (Typ) | 4µs, 3µs |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -30°C~100°C |
| Package | Tape & Reel (TR) |
| Package / Case | 16-SMD, Gull Wing |
| Supplier Device Package | 16-SMD |
| Other | |
| Input Type | AC, DC |
| Mfr | Lite-On Inc. |
| Output Type | Transistor |
| Product Status | Obsolete |
| Series | - |
| Turn On / Turn Off Time (Typ) | - |
| Vce Saturation (Max) | 200mV |
