Lite-On Inc.Taiwan, China

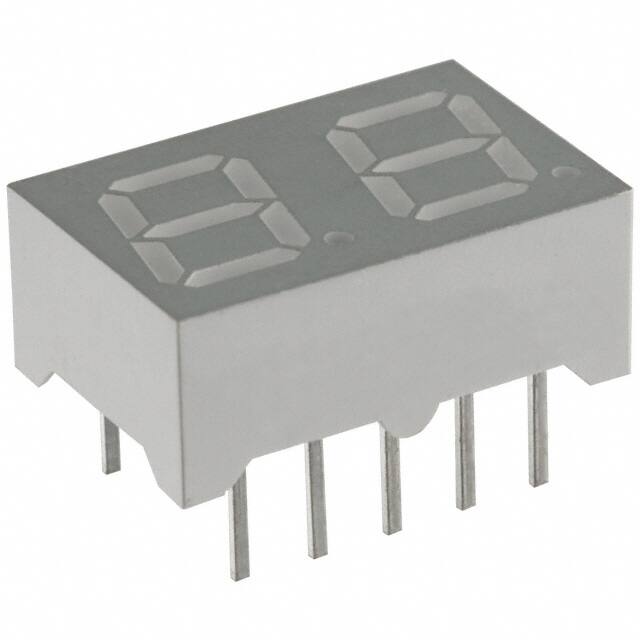

DISPLAY 7SEG 0.28" DBL BLU 10DIP
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Test | 20mA |
| Power Dissipation (Max) | 65mW |
| Voltage - Forward (Vf) (Typ) | 3.8V |
| Environment and package | |
| Digit/Alpha Size | 0.28" (7.00mm) |
| Package | Tube |
| Package / Case | 10-DIP (0.300", 7.62mm) |
| Size / Dimension | 0.394" H x 0.591" W x 0.240" D (10.00mm x 15.02mm x 6.10mm) |
| Other | |
| Base Product Number | LTD-2601 |
| Color | Blue |
| Common Pin | Common Anode |
| Display Type | 7-Segment |
| Mfr | Lite-On Inc. |
| Millicandela Rating | 3mcd |
| Number of Characters | 2 |
| Product Status | Obsolete |
| Series | - |
| Wavelength - Peak | 428nm |
