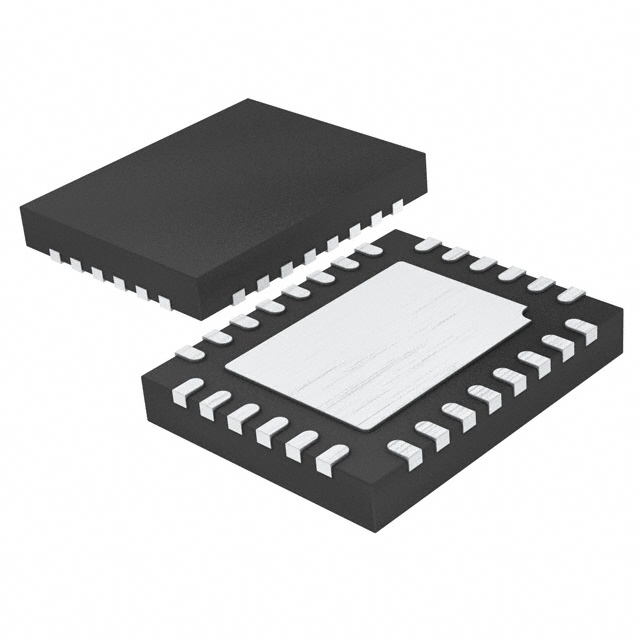

IC CHARGE PUMP DC/DC CTRLR 28QFN
All alternatives
View full reportTechnical parameters
Key specs
TopologyBoost
Outputs1
Input voltage6 ~ 72 V
Switching frequency100 kHz ~ 1 MHz
| Power | |
|---|---|
| Voltage - Supply (Vcc/Vdd) | 6V ~ 72V |
| AC and DC characteristics | |
| Frequency - Switching | 100kHz ~ 1MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Package | Tape & Reel (TR) |
| Package / Case | 28-WFQFN Exposed Pad |
| Supplier Device Package | 28-QFN (4x5) |
| Other | |
| Base Product Number | LTC7820 |
| Clock Sync | No |
| Control Features | Current Limit, Enable, Frequency Control, Power Good, Soft Start, Tracking |
| Duty Cycle (Max) | 50% |
| Function | Step-Up, Step-Down |
| Mfr | Analog Devices Inc. |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Phases | 2 |
| Output Type | Transistor Driver |
| Product Status | Active |
| Serial Interfaces | - |
| Series | - |
| Synchronous Rectifier | No |
| Topology | Buck, Boost |
