Linearin(先积集成)China
All alternatives
View full reportTechnical parameters
Key specs
Quiescent current2.76 mATyp
Channels4
| Power | |
|---|---|
| 供电电压 | 4.5V~48V |
| 通道数 | 4 |
| 静态电流 | 2760μA |
| AC and DC characteristics | |
| 共模抑制比 | 132 |
| 压摆率 | 2.6V/μs |
| 噪声密度 | 15nV/√Hz |
| 增益带宽 | 4MHz |
| 最大失调电压 | 0.025mV |
| 电压噪声 | 0.32μVP-P |
| 电源抑制比 | 135 |
| Environment and package | |

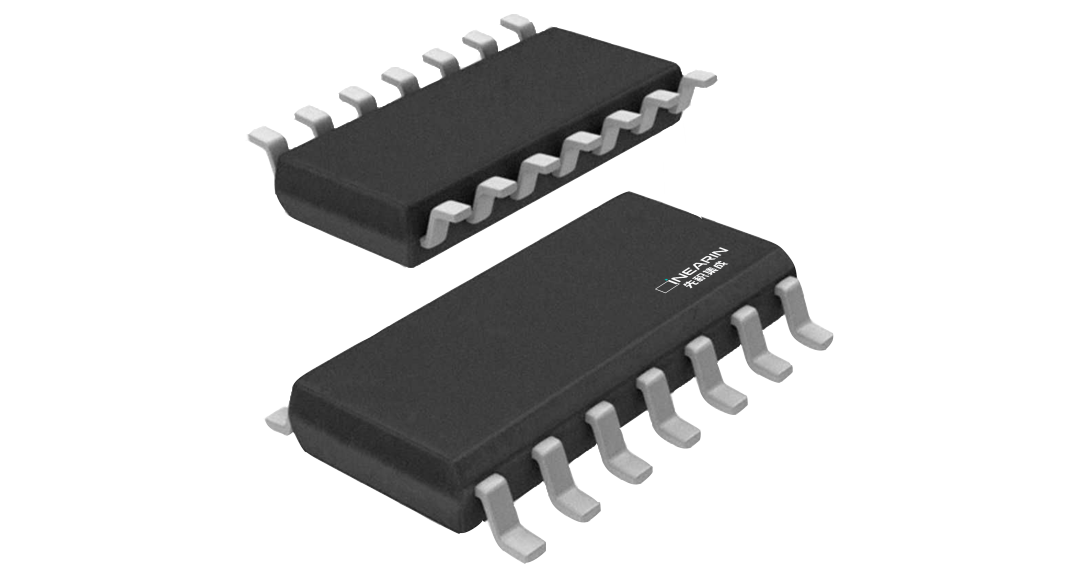

| 封装 | SO-14,TSSOP-14 |
| 温度漂移 | 0.05µV/℃ |
| Other | |
| 轨至轨 | RRO |
