Analog Devices Inc.United States
IC OPAMP GP 2 CIRCUIT 8SO
All alternatives
View full reportTechnical parameters
Key specs
Supply voltage3 ~ 12.6 V
Gain bandwidth product60 MHzTyp
Input offset voltage100 µVTyp
Quiescent current1.05 mATyp
Channels2
| Power | |
|---|---|
| Current - Input Bias | 1.5 µA |
| Current - Output / Channel | 55 mA |
| Current - Supply | 1.05mA (x2 Channels) |
| Voltage - Supply Span (Max) | 12.6 V |
| Voltage - Supply Span (Min) | 3 V |
| AC and DC characteristics | |
| Gain Bandwidth Product | 60 MHz |
| Slew Rate | 17V/µs |
| Voltage - Input Offset | 100 µV |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C~70°C |
| Package | Tube |

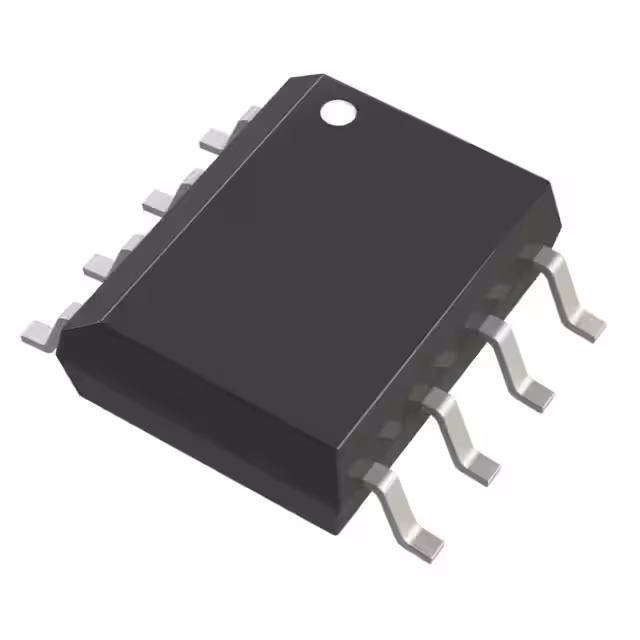

| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SO |
| Other | |
| Amplifier Type | General Purpose |
| Base Product Number | LT6234 |
| Mfr | Analog Devices Inc. |
| Number of Circuits | 2 |
| Output Type | Rail-to-Rail |
| Product Status | Active |
| Series | LT® |
