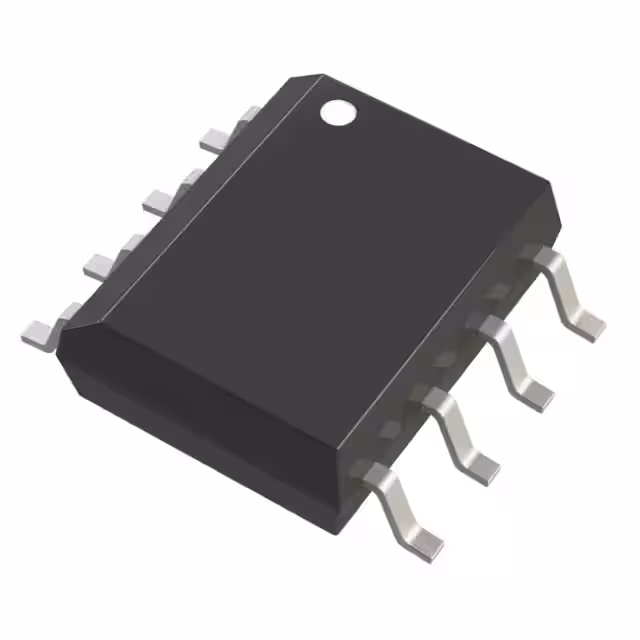

IC REG LINEAR 5V 500MA 8SO
All alternatives
View full reportTechnical parameters
Key specs
Output voltage5 V
Output current500 mAMax
Input voltage≤ 20 V
Dropout voltage450 mVMax · 500mA
Quiescent current75 µATyp
| Power | |
|---|---|
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 75 µA |
| Current - Supply (Max) | 16 mA |
| Voltage Dropout (Max) | 0.45V @ 500mA |
| Voltage - Input (Max) | 20V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 5V |
| AC and DC characteristics | |
| PSRR | 65dB (120Hz) |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~125°C |
| Package | Tube |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SO |
| Other | |
| Base Product Number | LT1763 |
| Control Features | Enable |
| Mfr | Analog Devices Inc. |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Type | Fixed |
| Product Status | Active |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Series | - |
