Analog Devices Inc.United States
IC COMP R-RINOUT SINGLE SOT23-6
All alternatives
View full reportTechnical parameters
Key specs
Elements1
Output typePush-pull
Propagation delay13 nsMax
Supply voltage2.7 ~ 6 V
Quiescent current9 mAMax
| Power | |
|---|---|
| Current - Input Bias (Max) | 6µA @ 5V |
| Current - Output (Typ) | 20mA |
| Current - Quiescent (Max) | 9mA |
| Voltage - Supply, Single/Dual (±) | 2.7V ~ 6V |
| AC and DC characteristics | |
| CMRR, PSRR (Typ) | 65dB CMRR, 80dB PSRR |
| Propagation Delay (Max) | 13ns |
| Voltage - Input Offset (Max) | 2.5mV @ 5V |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C |
| Package | Tape & Reel (TR) |

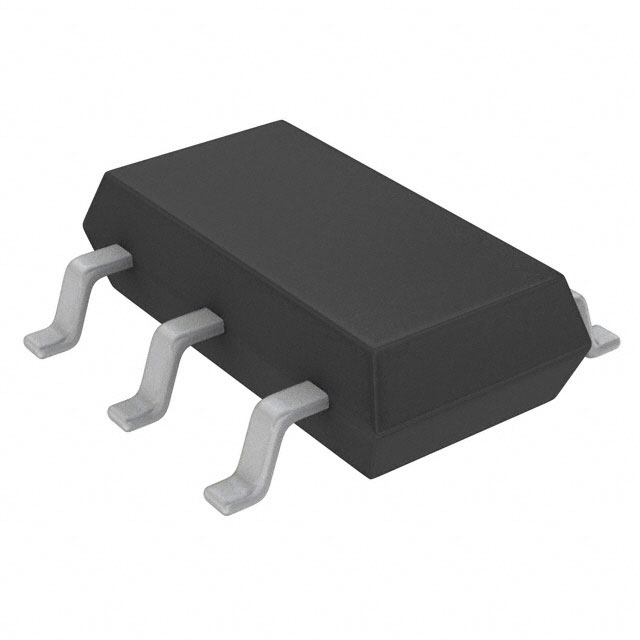

| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Supplier Device Package | TSOT-23-6 |
| Other | |
| Base Product Number | LT1719 |
| Hysteresis | 7mV |
| Mfr | Analog Devices Inc. |
| Number of Elements | 1 |
| Output Type | CMOS, Rail-to-Rail, TTL |
| Product Status | Active |
| Series | UltraFast™ |
| Type | General Purpose |
