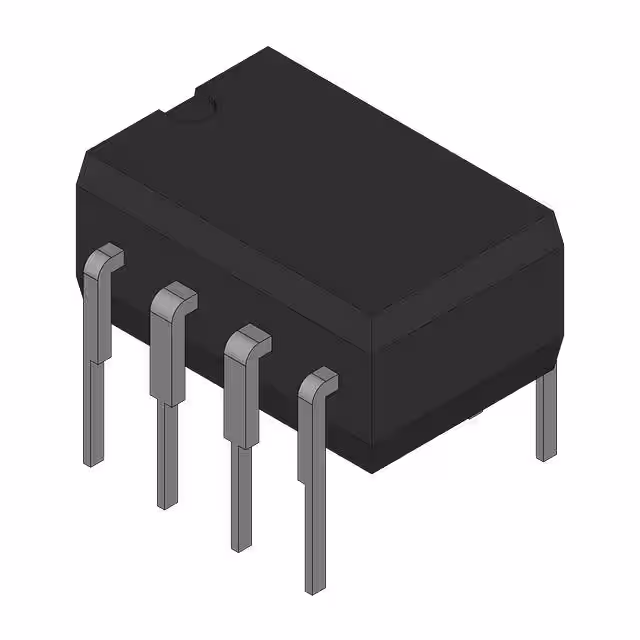

IC REG CHARG PUMP INV 100MA 8DIP
All alternatives
View full reportTechnical parameters
Key specs
Input voltage3.5 ~ 15 V
Output voltage3.5 ~ 26.4 V
Output current100 mAMax
Switching frequency25 kHz
| Power | |
|---|---|
| Current - Output | 100mA |
| Voltage - Input (Max) | 15V |
| Voltage - Input (Min) | 3.5V |
| Voltage - Output (Max) | 26.4V |
| Voltage - Output (Min/Fixed) | 3.5V (-Vin, 2Vin) |
| AC and DC characteristics | |
| Frequency - Switching | 25kHz |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | 0°C~70°C(TA) |
| Package | Tube |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-PDIP |
| Other | |
| Base Product Number | LT1054 |
| Function | Ratiometric, Step-Up |
| Mfr | Texas Instruments |
| Number of Outputs | 1 |
| Output Configuration | Positive or Negative |
| Output Type | Adjustable (Fixed) |
| Product Status | Discontinued at Digi-Key |
| Series | - |
| Synchronous Rectifier | No |
| Topology | Charge Pump |
