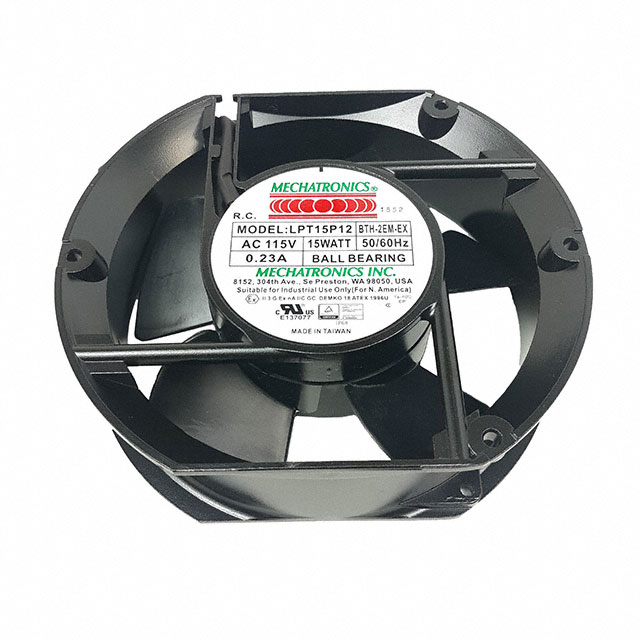

LPT15P12-BTHR-2EM-EX
Mechatronics Fan GroupUnited States

LPT15P12-BTHR-2EM-EX

ActiveAC Fans

EC FAN AXIAL 172X150X51MM 120VAC

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Current Rating (Amps)0.230A
Power (Watts)15.00W
Voltage Range100 ~ 130VAC
Voltage - Rated115VAC
AC and DC characteristics
Noise57.0dB(A)
Environment and package
Lifetime @ Temp.-
Operating Temperature-
PackageBulk
Size / DimensionRectangular/Rounded - 172mm L x 150mm H
Other
Air Flow220.0 CFM (6.16m³/min)
Approval AgencyATEX
Base Product NumberLPT15
Bearing TypeBall
Fan TypeTubeaxial
FeaturesAuto Restart, Electronic Commutation (EC)
Ingress ProtectionIP68 - Dust Tight, Waterproof
Material - BladePlastic
Material - FrameMetal
MfrMechatronics Fan Group
Product StatusActive
RPM3000 RPM
SeriesLPT15P
Static Pressure0.620 in H2O (154.4 Pa)
Termination2 Terminals
Weight1.543 lb (700.0 g)
Width51.00mm

Documents

No documents are linked to this part yet.
