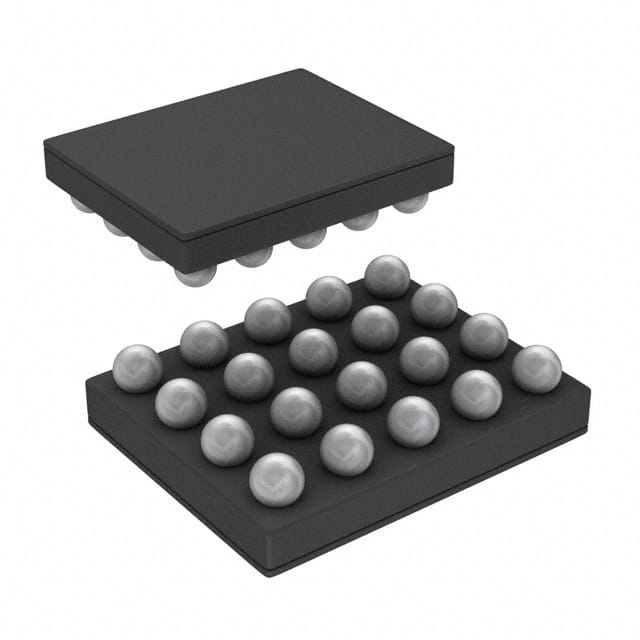

LP8720TLE-B/NOPB
Texas InstrumentsUnited States

LP8720TLE-B/NOPB

ObsoleteVoltage Regulators - Linear + Switching

IC REG 6OUT BUCK/LNR SYNC 20USMD

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Voltage/Current - Output 10.8V ~ 2.3V, 400mA
Voltage/Current - Output 21.2V ~ 3.3V, 300mA
Voltage/Current - Output 31.2V ~ 3.3V, 300mA
Voltage - Supply2.7V ~ 4.5V
AC and DC characteristics
Frequency - Switching2MHz
Environment and package
Mounting TypeSurface Mount
Operating Temperature-40°C~85°C
PackageTape & Reel (TR); Cut Tape (CT); Digi-Reel®
Package / Case20-WFBGA, DSBGA
Supplier Device Package20-DSBGA
Other
Base Product NumberLP8720
MfrTexas Instruments
Number of Outputs6
Product StatusObsolete
Series-
TopologyStep-Down (Buck) Synchronous (1), Linear (LDO) (5)
w/LED DriverNo
w/SequencerYes
w/SupervisorNo

Documents

No documents are linked to this part yet.
