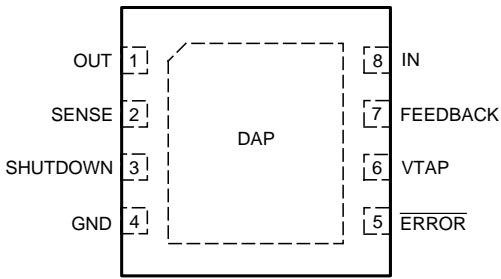

8-Pin WSON Top View Connect DA…

LP2951CMX-3.0/NOPB

IC REG LIN POS ADJ 100MA 8SOIC

LP2951CMX-3.0/NOPB is a micropower linear voltage regulator with a 3.0V output, input voltage range of 2.3V to 30V, and a maximum output current of 100mA. It is available in an 8-pin WSON package and features low quiescent current and low dropout voltage.Checked against the datasheet

See alternatives Ask AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Key specs

Output voltage2.985 ~ 3.015 VMax: 3.015 V (TJ=25°C)

Output current100 mAMax

Input voltage2.3 ~ 30 V

Dropout voltage450 mVMax · Max: 450 mV (IL=100 mA)

Quiescent current75 µATyp · Max: 120 μA (IL=100 μA)

Datasheet-verified parameters

19 items

Parameter	Value and test conditions	Source
Output voltage	Min: 2.985 V, Typ: 3 V, Max: 3.015 V (TJ=25°C)
Output current	100 mA
Input Voltage Range	2.3 V to 30 V
Dropout voltage	Typ: 380 mV, Max: 450 mV (IL=100 mA)
Quiescent current	Typ: 75 µA, Max: 120 µA (IL=100 µA)
Package	WSON (8)
Operating temperature	-55 °C to 150 °C (Junction temperature, TJ)
Recommended Operating Conditions	Maximum input supply voltage: 30 V; Junction temperature, TJ: -55 °C to 150 °C
Absolute Maximum Ratings	Input supply voltage: -0.3 V to 30 V; Junction temperature, TJ: 150 °C; Storage temperature, Tstg: -65 °C to 150 °C
Line regulation	Typ: 0.03%, Max: 0.1% (VONOM+1V ≤ Vin ≤ 30 V)
Load regulation	Typ: 0.04%, Max: 0.1% (100 µA ≤ IL ≤ 100 mA)
Output voltage temperature coefficient	Typ: 20 ppm/°C, Max: 120 ppm/°C (-40°C ≤ TJ ≤ 125°C)
Current limit	Typ: 160 mA, Max: 200 mA (VOUT=0 V)
Thermal regulation	Typ: 0.05 %/W, Max: 0.2 %/W
Output noise	Typ: 100 µVRMS (10 Hz to 100 kHz, CL=3.3 µF)
Reference voltage	Min: 1.22 V, Typ: 1.235 V, Max: 1.25 V
Feedback pin bias current	Typ: 20 nA, Max: 40 nA
ESD Ratings	HBM: ±2500 V (IN, OUT, GND, ERROR); ±2000 V (SHUTDOWN); ±1500 V (SENSE); ±1000 V (VTAP, FEEDBACK)
Protection Features	Current and Thermal Limiting

All parameters (22)ExpandCollapse

Power
Current - Output	100mA
Current - Quiescent (Iq)	120 µA
Current - Supply (Max)	14 mA
Voltage Dropout (Max)	0.6V @ 100mA
Voltage - Input (Max)	30V
Voltage - Output (Max)	29V
Voltage - Output (Min/Fixed)	1.235V (3V)
AC and DC characteristics
PSRR	-
Environment and package
Mounting Type	Surface Mount
Operating Temperature	-40°C~125°C(TJ)
Package	Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SOIC
Other
Base Product Number	LP2951
Control Features	Enable
Mfr	Texas Instruments
Number of Regulators	1
Output Configuration	Positive
Output Type	Adjustable (Fixed)
Product Status	Active
Protection Features	Over Current, Over Temperature, Short Circuit
Series	-

Pinout and package

Pin	Name	Function	Source
1		OUT, Regulated output voltage
2		SENSE, Output voltage sense
3		SHUTDOWN, Disable device
4		GROUND, Ground
5		ERROR, Error output
6		VTAP, Internal resistor divider
7		FEEDBACK, Voltage feedback input
8		IN, Input supply voltage

Documents

DatasheetDatasheet · 2.1 MB · 2026-10-29
