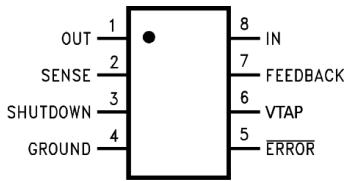

8-Pin PDIP, SOIC, VSSOP Top Vi…

LP2951CM-3.0/NOPB

IC REG LIN POS ADJ 100MA 8SOIC

LP2951CM-3.0/NOPB is a micropower linear voltage regulator with a 3.0V output, input range of 2.3V to 30V, and 100mA maximum output current in an 8-pin VSSOP package, featuring low quiescent current and low dropout voltage.Checked against the datasheet

See alternatives Ask AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Key specs

Output voltage2.985 ~ 3.015 VMax: 3.015 V (TJ=25°C)

Output current100 mAMax

Input voltage2.3 ~ 30 V

Dropout voltage80 mVMax · Max: 80 mV (IL=100 μA)，Max: 450 mV (IL=100 mA)

Quiescent current75 µATyp · Max: 120 μA (IL=100 μA)，Max: 12 mA (IL=100 mA)

Datasheet-verified parameters

20 items

Parameter	Value and test conditions	Source
Output voltage	Min: 2.985 V, Typ: 3 V, Max: 3.015 V (TJ=25°C); Min: 2.964 V, Typ: 3 V, Max: 3.036 V (Full operating temperature range)
Output current	100 mA (Ensured)
Input Voltage Range	2.3 V to 30 V
Dropout voltage	Typ: 50 mV, Max: 80 mV (IL=100 μA); Typ: 380 mV, Max: 450 mV (IL=100 mA)
Quiescent current	Typ: 75 μA, Max: 120 μA (IL=100 μA); Typ: 8 mA, Max: 12 mA (IL=100 mA)
Package	VSSOP (8)
Operating temperature	Min: -40 °C, Max: 125 °C (LP2951C-XX)
Grade	Commercial (C)
RoHS	Compliant (NOPB)
Recommended Operating Conditions	Max Input Supply Voltage: 30 V; Junction Temperature (LP2951C-XX): -40 °C to 125 °C
Absolute Maximum Ratings	Input Supply Voltage: -0.3 V to 30 V; Junction Temperature: 150 °C; Storage Temperature: -65 °C to 150 °C
Line regulation	Typ: 0.03 %, Max: 0.1 % (VONOM+1V ≤ VIN ≤ 30 V)
Load regulation	Typ: 0.04 %, Max: 0.1 % (100 μA ≤ IL ≤ 100 mA)
Output voltage temperature coefficient	Typ: 20 ppm/°C, Max: 120 ppm/°C (-40 °C ≤ TJ ≤ 125 °C)
Current limit	Typ: 160 mA, Max: 200 mA (VOUT=0 V)
Thermal regulation	Typ: 0.05 %/W, Max: 0.2 %/W
Output noise	Typ: 100 μVRMS (10 Hz to 100 kHz, CL=3.3 μF)
Reference voltage	Min: 1.22 V, Typ: 1.235 V, Max: 1.25 V
Feedback pin bias current	Typ: 20 nA, Max: 40 nA
ESD Rating	HBM: ±2500 V (IN, OUT, GND, ERROR); ±2000 V (SHUTDOWN); ±1500 V (SENSE); ±1000 V (VTAP, FEEDBACK)

All parameters (22)ExpandCollapse

Power
Current - Output	100mA
Current - Quiescent (Iq)	120 µA
Current - Supply (Max)	14 mA
Voltage Dropout (Max)	0.6V @ 100mA
Voltage - Input (Max)	30V
Voltage - Output (Max)	29V
Voltage - Output (Min/Fixed)	1.235V (3V)
AC and DC characteristics
PSRR	-
Environment and package
Mounting Type	Surface Mount
Operating Temperature	-40°C~125°C(TJ)
Package	Tube
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SOIC
Other
Base Product Number	LP2951
Control Features	Enable
Mfr	Texas Instruments
Number of Regulators	1
Output Configuration	Positive
Output Type	Adjustable (Fixed)
Product Status	Active
Protection Features	Over Current, Over Temperature, Short Circuit
Series	-

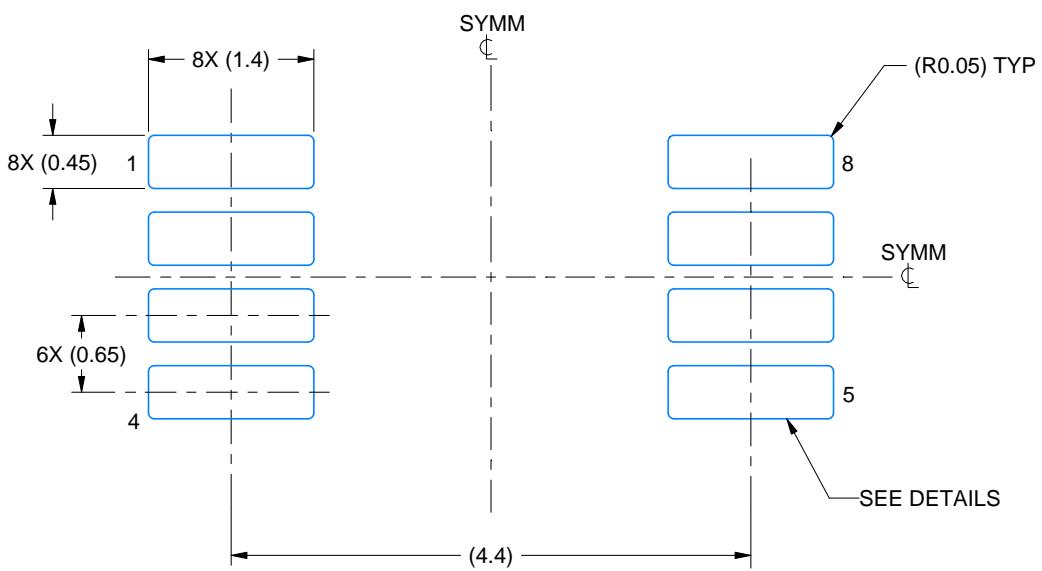

Pinout and package

Pin	Name	Function
1	OUT	(Regulated output voltage)
2	SENSE	(Output voltage sense)
3	SHUTDOWN	(Disable device)
4	GROUND	(Ground)
5	ERROR	(Error output)
6	VTAP	(Internal resistor divider)
7	FEEDBACK	(Voltage feedback input)
8	IN	(Input supply voltage)
