onsemiUnited States

LP2951CD

ObsoleteVoltage Regulators - LinearSOIC-8

IC REG LIN POS ADJ 100MA 8SOIC

LP2951CD is a SOIC-8 package micropower linear voltage regulator supporting 3.0V/3.3V/5.0V fixed or 1.25V-29V adjustable output, with 100mA max output current, low quiescent current, error output, and shutdown features.Checked against the datasheet

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Key specs

Output voltage1.25 ~ 29 V
Output current100 mAMax
Input voltage4 ~ 30 V
Dropout voltage80 mVMax · Typ 30 mV (IO=100 μA)，Typ 350 mV (IO=100 mA)，Max 80 mV (IO=100 μA)，Max 450 mV (IO=100 mA)
Quiescent current75 µATyp · Typ 75 μA (IO=100 μA)，Typ 4.0 mA (IO=100 mA)，Max 120 μA (IO=100 μA)，Max 12 mA (IO=100 mA)

Datasheet-verified parameters

17 items
ParameterValue and test conditionsSource
Output Voltage3.0 V, 3.3 V, 5.0 V (Fixed) or 1.25 V to 29 V (Adjustable)
Output Current100 mA (Max)
Input Voltage Range4.0 V to 30 V (for 3.0V/3.3V versions), 6.0 V to 30 V (for 5.0V version)
Dropout VoltageTyp 30 mV (IO=100 μA), Typ 350 mV (IO=100 mA); Max 80 mV (IO=100 μA), Max 450 mV (IO=100 mA)
Quiescent CurrentTyp 75 μA (IO=100 μA), Typ 4.0 mA (IO=100 mA); Max 120 μA (IO=100 μA), Max 12 mA (IO=100 mA)
PackageSOIC-8
Operating Temperature-40°C to +125°C
GradeCommercial (LP2951), Automotive (NCV2951 prefix only)
RoHSCompliant
Line RegulationTyp 0.08%, Max 0.20% (LP2951C), Typ 0.04%, Max 0.10% (LP2951AC)
Load RegulationTyp 0.13%, Max 0.20% (LP2951C), Typ 0.05%, Max 0.10% (LP2951AC)
Current LimitTyp 220 mA, Max 300 mA (VO Shorted to Ground)
Output Noise VoltageTyp 126 μVrms (CL=1.0 μF), Typ 56 μVrms (CL=100 μF) (10 Hz to 100 kHz)
Thermal RegulationTyp 0.05 %/W, Max 0.20 %/W
Protection FeaturesInternal Current and Thermal Limiting
ESD ProtectionHBM 2000 V Class 2, MM 200 V Class B, CDM 2000 V Class IV
Recommended Output Capacitor1.0 μF (Min for stability)
All parameters (22)ExpandCollapse
Power
Current - Output100mA
Current - Quiescent (Iq)120 µA
Current - Supply (Max)12 mA
Voltage Dropout (Max)0.45V @ 100mA
Voltage - Input (Max)30V
Voltage - Output (Max)30V
Voltage - Output (Min/Fixed)1.235V (5V)
AC and DC characteristics
PSRR-
Environment and package
Mounting TypeSurface Mount
Operating Temperature-40°C~125°C
PackageTube
Package / Case8-SOIC (0.154", 3.90mm Width)
Supplier Device Package8-SOIC
Other
Base Product NumberLP295
Control Features-
Mfronsemi
Number of Regulators1
Output ConfigurationPositive
Output TypeAdjustable (Fixed)
Product StatusObsolete
Protection FeaturesOver Current, Over Temperature
Series-

Pinout and package

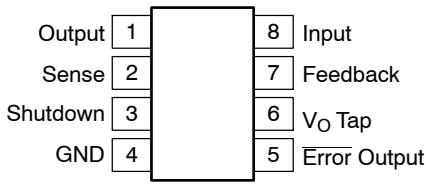

PIN CONNECTIONS (Top View)
PIN CONNECTIONS (Top View)
Package: SOIC-8
PinNameFunctionSource
1Output
2Sense
3Shutdown
4GND
5Error Output
6VOTap
7Feedback
8Input
