Texas InstrumentsUnited States

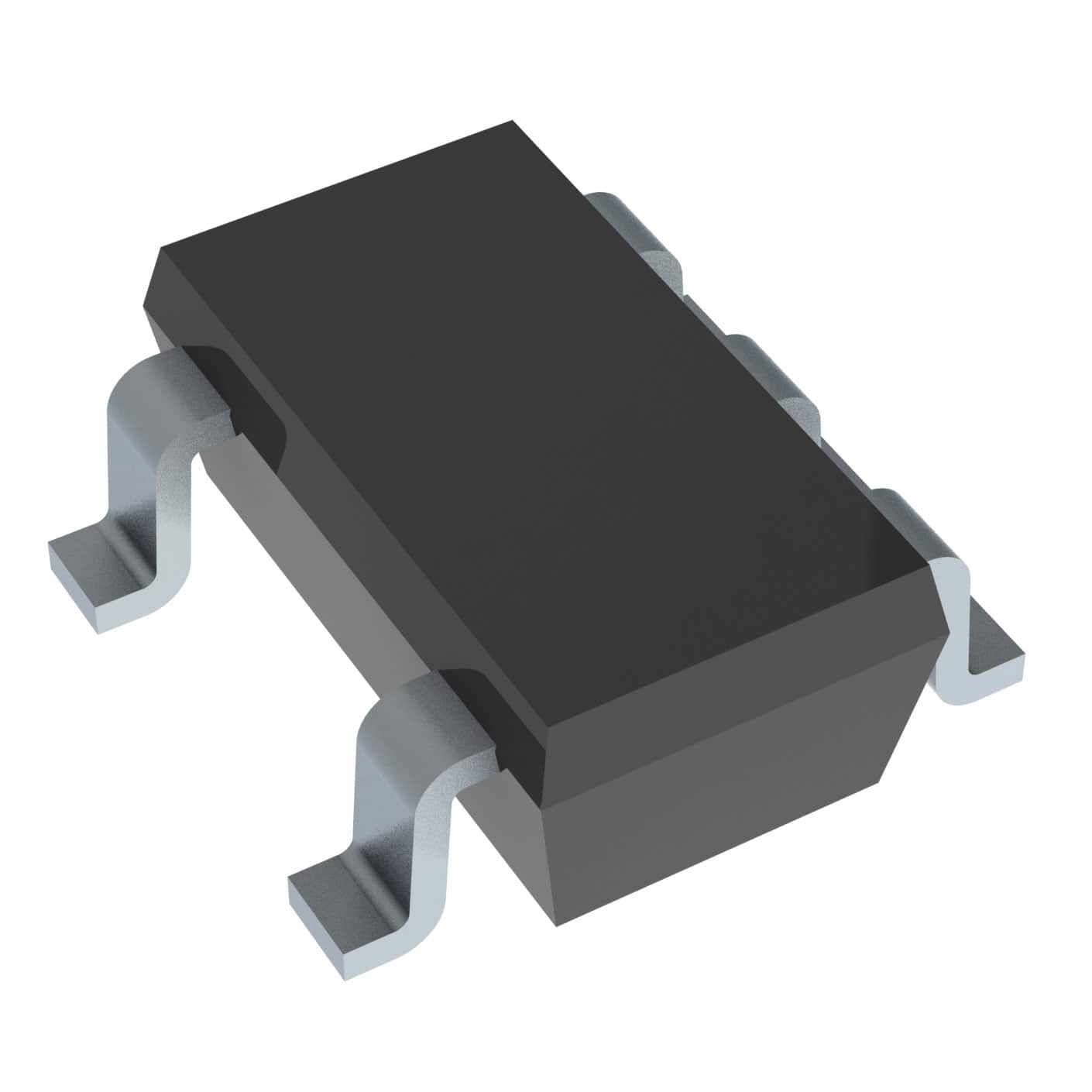

IC OPAMP GP 1 CIRCUIT SOT23-5
All alternatives
View full reportTechnical parameters
Key specs
Supply voltage2.7 ~ 15.5 V
Gain bandwidth product1.1 MHzTyp
Input offset voltage110 µVTyp
Quiescent current800 µATyp
Channels1
| Power | |
|---|---|
| Current - Input Bias | 1 pA |
| Current - Output / Channel | 50 mA |
| Current - Supply | 800µA |
| Voltage - Supply Span (Max) | 15.5 V |
| Voltage - Supply Span (Min) | 2.7 V |
| AC and DC characteristics | |
| Gain Bandwidth Product | 1.1 MHz |
| Slew Rate | 1.1V/µs |
| Voltage - Input Offset | 110 µV |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| Other | |
| Amplifier Type | General Purpose |
| Base Product Number | LMC7101 |
| Mfr | Texas Instruments |
| Number of Circuits | 1 |
| Output Type | Rail-to-Rail |
| Product Status | Not For New Designs |
| Series | - |
